.AixLib.Airflow.WindowVentilation

Information

Overview

This package contains models of window ventilation with various types of sash openings from literature.

Currently, the models are only applicable for single-sided ventilation.

Window opening types

This package considers the following types of window openings:

• Simple opening, without window sash
• Side-hung opening, in- or outward, for casement window
• Top-hung opening, outward, for awning window
• Bottom-hung opening, inward, for hopper window, tilt window
• Pivot opening, vertical or horizontal, for center hinge window
• Sliding opening, vertical, for single-hung or double-hung window
• Sliding opening, horizontal, for slider window

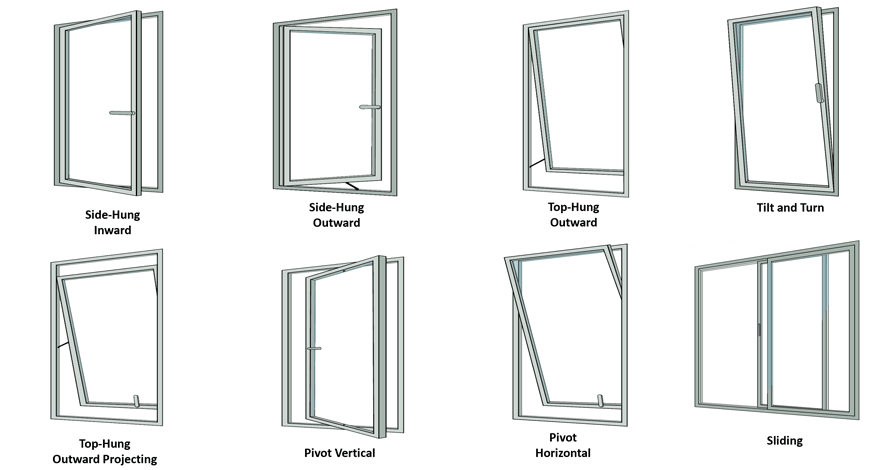

These opening types are included in WindowOpeningTypes.

Opening area types

For hinged and pivot openings, there are five different types to define the opening area:

• Clear opening area, as shown in the figure on the left
• Geometric opening area, as shown in the figure in the middle, see function geometricOpeningArea
• Projective opening area, as shown in the figure on the right, see function projectiveOpeningArea
• Equivalent opening area, derived from clear opening area and geometric opening area, see function equivalentOpeningArea
• Effective opening area, derived from clear opening area and equivalent opening area, see function effectiveOpeningArea

Nomenclature

Abv: Above

Amb: Ambient

Ang: Angle

ASL: Above see level

Avg: Average

Axs: Axis

Clr: Clear

Cof: Coefficient

Cor: Correlation; Correction

Dcg: Discharge

Dif: Difference

Eff: Effective

Eqv: Equivalent

Ext: External

Frm: Frame

Geo: Geometric

Inc: Incidence

Int: Interim; Internal

Lim: Limit

Loc: Local

NPL: Neutral pressure level

Opn: Open; Opening

Ovl: Overlap

Prj: Projective

Ref: Reference

Rev: Reveal

Ruf: Rough; Roughness

Sas: Sash

Contents

Name	Description
EmpiricalExpressions	Empirical expressions for calculation of the airflow
OpeningAreas	Calculation of different opening areas based on different window types
Utilities
Examples
BaseClasses
