.AixLib.Controls.Continuous.Examples.OffTimer

Example model for off timer

Information

Example that demonstrates the use of the model AixLib.Controls.Continuous.OffTimer. The input to the two timers are alternating boolean values. Whenever the input becomes false(=0), the timer is reset. The figures below show the input and output of the blocks.

Input and output of the OffTimer offTim1.

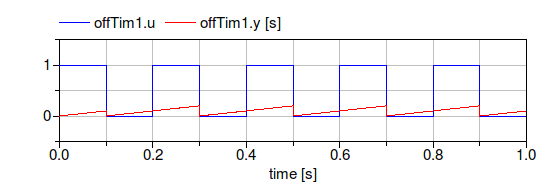

Input and output of the OffTimer offTim1.

Revisions
