modelMixingValveAndHEX_ExergyDestruction
Extends from HVACAgentBasedControl.BaseClasses.PartialCostFunction.
Information
Overview
- This model determines the exergy destruction of a mixing valve and a heat exchanger based on the inputs of the component.
- It is used together with an IntermediateAgent.
Concept

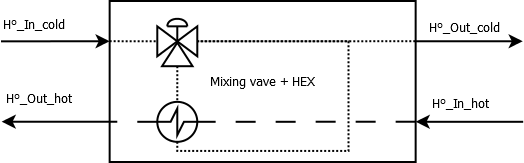

The figure above shows the control volume for the mixing valve and heat exchanger. Based on this volume the following function for exergy destruction has been developed. Details can be found in the reference.
References
- Felix Bünning. Development of a Modelica-library for agent-based control of HVAC systems. Bachelor thesis, 2016, RWTH Aachen University, Aachen, Germany.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | T_0 | 298.15 | Exergy reference temperature |
| Real | T_circuit_hot | 273.15 + 80 | Temperature of the hot water circuit |
| Real | m_flow_hot | 0.2 | Mass flow in the hot temperature circuit |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Interfaces.RealInput | capacity (from PartialCostFunction) | Input to connect with ProducerAgent | |
| Modelica.Blocks.Interfaces.RealOutput | cost (from PartialCostFunction) | Output to connect with ProducerAgent | |
| Modelica.Blocks.Interfaces.RealInput | T_cold_in | ||
| Modelica.Blocks.Interfaces.RealInput | m_flow_cold |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Real | T1 | Inlet cold temperature | |
| Real | T2 | Outlet cold temperature | |
| Real | T3 | Inlet hot temperature | |
| Real | T4 | Outlet hot temperature | |
| Real | m_flow_hot_actual |
Revisions
- October 2015, by Felix Bünning: Developed and implemented
