.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN100

Information

Pump for nominal pipe diameter of 100 mm, pump head range between 1 m and 34 m and maximum volume flow rate of 378.24 m³/h.

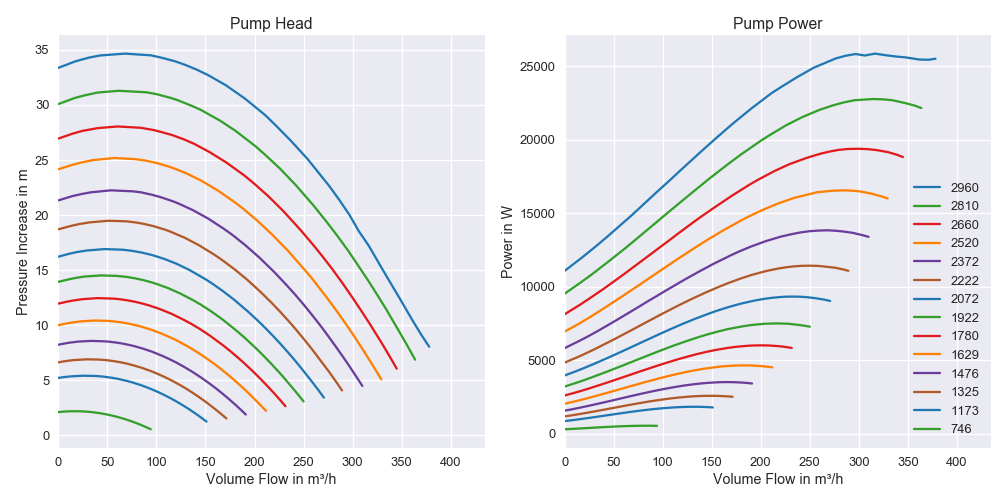

Measurement Data

cHQN:

0.00000e+00, 0.00000e+00, 3.80934e-06;

0.00000e+00, 1.28859e-05, 0.00000e+00;

-2.74876e-04, 0.00000e+00, 0.00000e+00

cPQN:

2.41585e+02, -5.23760e-01, 6.87057e-04, 1.38862e-07, 3.61130e-11;

0.00000e+00, 0.00000e+00, 5.57129e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 4.28832e-05, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-4.01650e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions

• 2018-07-02 by Luca Vedda:
  Generated
