.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN25_H1_6_V8

Information

Pump for nominal pipe diameter of 25 mm, pump head range between 1 m and 6 m and maximum volume flow rate of 8.87 m³/h.

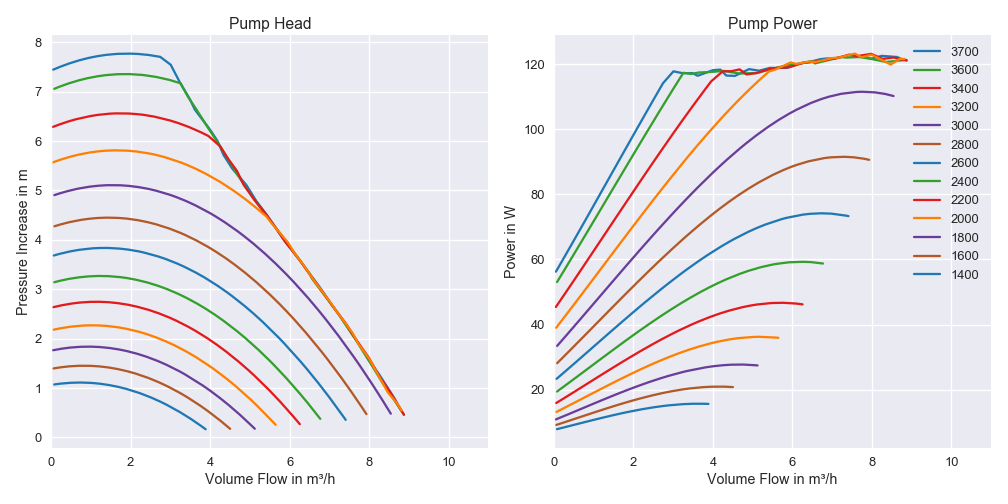

Measurement Data

cHQN:

0.00000e+00, 0.00000e+00, 5.42547e-07;

0.00000e+00, 9.73525e-05, 0.00000e+00;

-9.44653e-02, 0.00000e+00, 0.00000e+00

cPQN:

1.85342e-05, 1.14960e-02, -9.47363e-06, 4.22744e-09, -3.82959e-13;

0.00000e+00, 0.00000e+00, 1.53784e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 1.22375e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-1.07729e-01, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions

• 2018-09-28 by Luca Vedda:
  Generated
