.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN25_H1_8_V9

Information

Pump for nominal pipe diameter of 25 mm, pump head range between 1 m and 8 m and maximum volume flow rate of 9 m³/h.

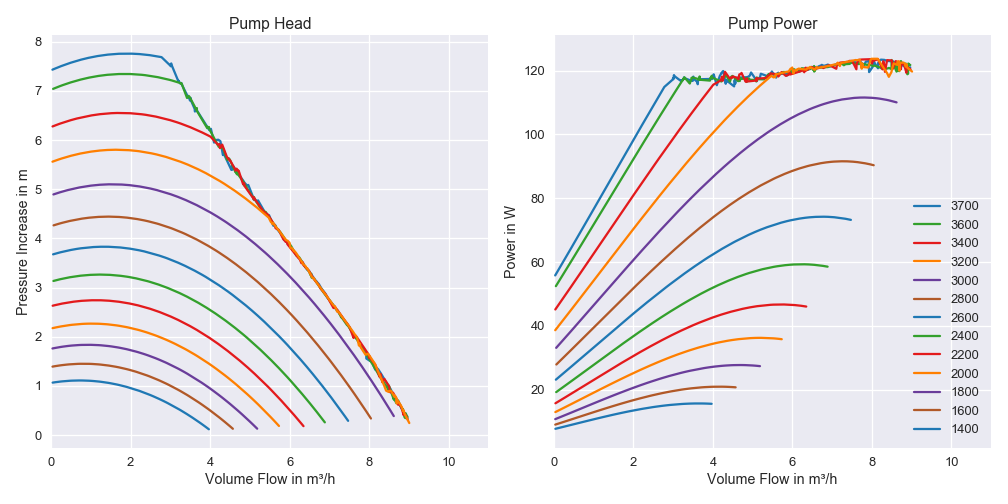

Measurement Data

cHQN:

0.00000e+00, 0.00000e+00, 5.42119e-07;

0.00000e+00, 9.63893e-05, 0.00000e+00;

-9.40049e-02, 0.00000e+00, 0.00000e+00

cPQN:

1.86404e-05, 1.15429e-02, -9.54392e-06, 4.26061e-09, -3.87948e-13;

0.00000e+00, 0.00000e+00, 1.54239e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 1.16734e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-1.06179e-01, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions

• 2018-07-02 by Luca Vedda:
  Generated
