.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN30_H1_12

Pump with head 1 to 11m and 10,7m^3/h volume flow (Wilo Stratos 30/1-12)

Information

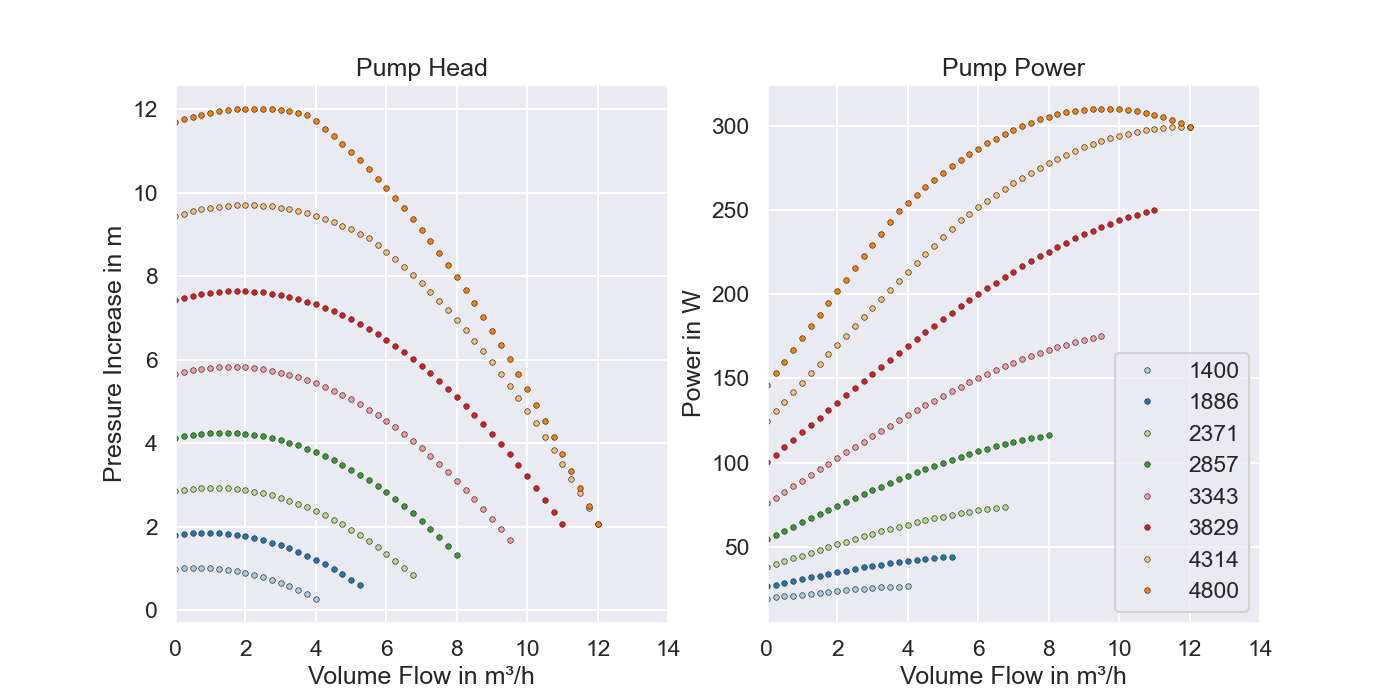

Measurement and Regression Data

Dimension estimate, but inaccuracies occur due to lack of information in the data sheets.

Espacially because of missing information of upper and lower limit of pump speed.


1

cHQN:

0.00000e+00, 0.00000e+00, 5.07080e-07;

0.00000e+00, 6.15992e-05, 0.00000e+00;

-6.58190e-02, 0.00000e+00, 0.00000e+00

cPQN:

4.06360e-05, 2.77185e-02, -2.02099e-05, 8.49238e-09, -8.67775e-13;

0.00000e+00, 0.00000e+00, 1.21688e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 6.87022e-06, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-3.71130e-02, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions
