.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN30_H1_12_V13

Information

Pump for nominal pipe diameter of 30 mm, pump head range between 1 m and 12 m and maximum volume flow rate of 13.5 m³/h.

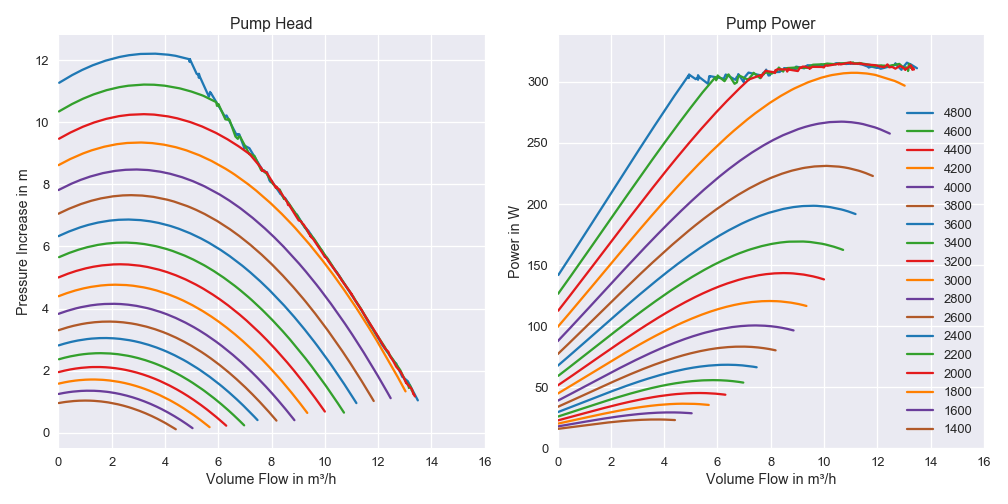

Measurement Data

cHQN:

0.00000e+00, 0.00000e+00, 4.88348e-07;

0.00000e+00, 1.15190e-04, 0.00000e+00;

-8.00446e-02, 0.00000e+00, 0.00000e+00

cPQN:

2.53904e-05, 1.86083e-02, -9.28813e-06, 3.15573e-09, -1.57051e-13;

0.00000e+00, 0.00000e+00, 1.43568e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 1.16467e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-9.73911e-02, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions

• 2018-07-02 by Luca Vedda:
  Generated
