.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN40_H1_12_V24

Information

Pump for nominal pipe diameter of 40 mm, pump head range between 1 m and 12 m and maximum volume flow rate of 24 m³/h.

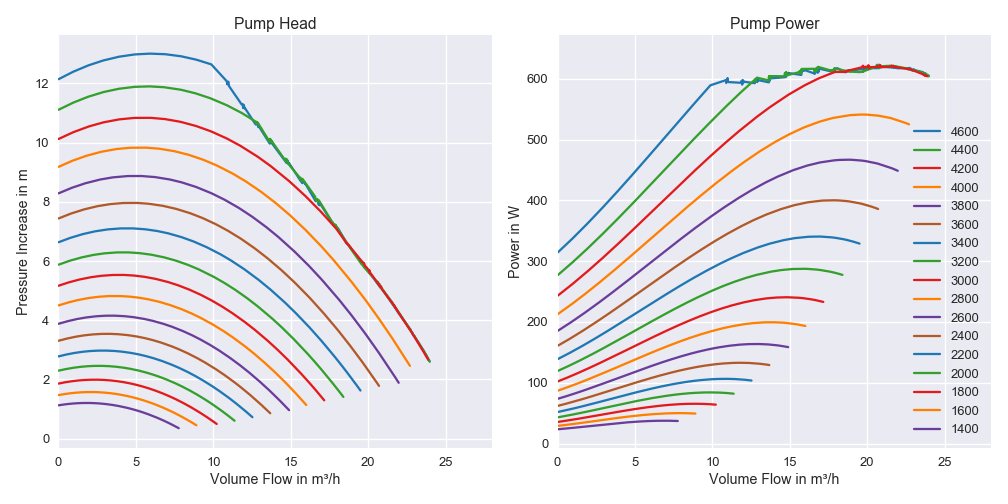

Measurement Data

cHQN:

0.00000e+00, 0.00000e+00, 5.73723e-07;

0.00000e+00, 6.28260e-05, 0.00000e+00;

-2.41203e-02, 0.00000e+00, 0.00000e+00

cPQN:

1.88139e-05, 1.23610e-02, 4.55839e-07, 1.72215e-09, 1.78291e-13;

0.00000e+00, 0.00000e+00, 1.09900e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 1.89239e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-4.07739e-02, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions

• 2018-07-02 by Luca Vedda:
  Generated
