.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN40_H1_16_V29

Information

Pump for nominal pipe diameter of 40 mm, pump head range between 1 m and 16 m and maximum volume flow rate of 28.9 m³/h.

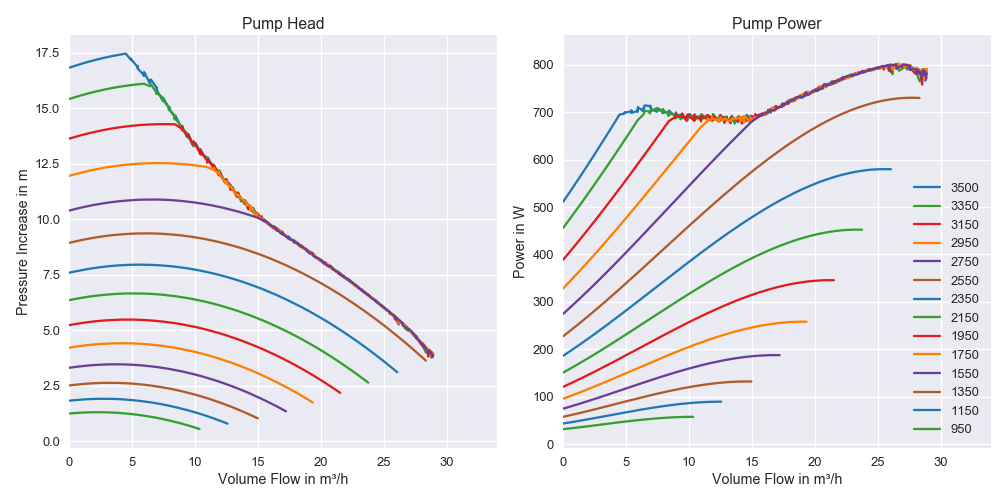

Measurement Data

cHQN:

0.00000e+00, 0.00000e+00, 1.37376e-06;

0.00000e+00, 5.53270e-05, 0.00000e+00;

-1.16039e-02, 0.00000e+00, 0.00000e+00

cPQN:

-2.01304e+01, 7.18841e-02, -3.93834e-05, 2.34207e-08, -1.61762e-12;

0.00000e+00, 0.00000e+00, 3.13936e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 1.94557e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-2.08205e-02, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions

• 2018-07-02 by Luca Vedda:
  Generated
