.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN40_H1_8_V17

Pump with head 1 to 8m and 17.5m^3/h volume flow

Information

Pump for nominal pipe diameter of 40 mm, pump head range between 1 m and 8 m and maximum volume flow rate of 17.5 m³/h.

Measurement Data

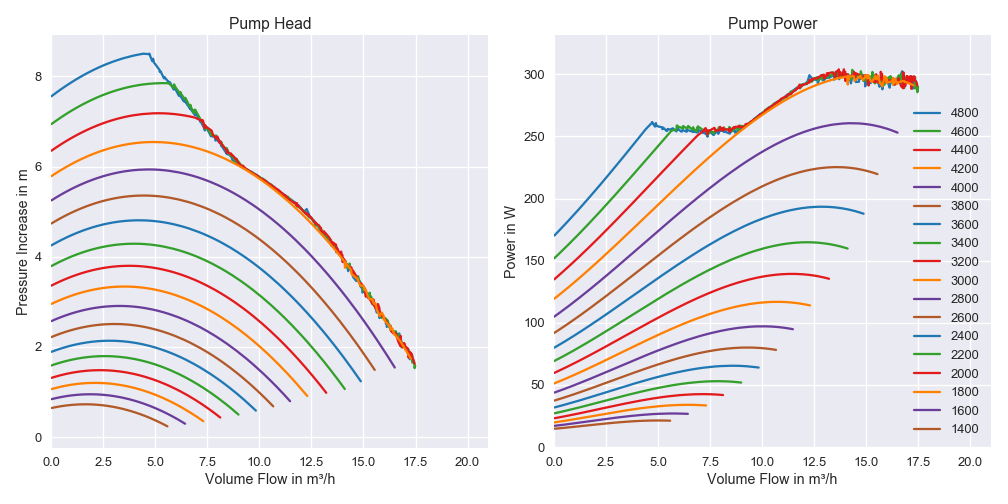

Pump Characterisistcs

cHQN:

0.00000e+00, 0.00000e+00, 3.27983e-07;

0.00000e+00, 7.36465e-05, 0.00000e+00;

-3.14521e-02, 0.00000e+00, 0.00000e+00

cPQN:

2.33926e-05, 1.61643e-02, -8.64452e-06, 3.55112e-09, -1.90733e-13;

0.00000e+00, 0.00000e+00, 7.43369e-07, 0.00000e+00, 0.00000e+00;

0.00000e+00, 1.55677e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-4.84242e-02, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions


Generated at 2025-04-02T18:24:35Z by OpenModelicaOpenModelica 1.24.5 using GenerateDoc.mos
