recordPump_DN50_H05_16

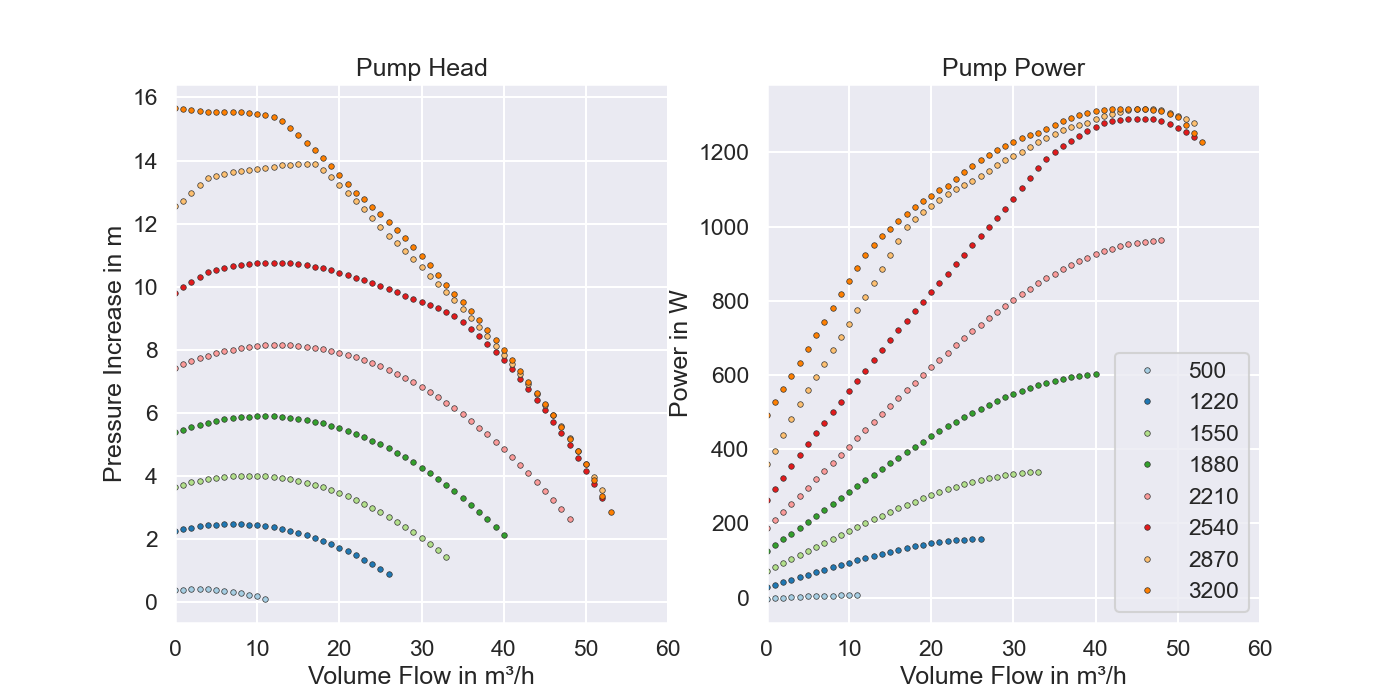

Pump with head 0.5 to 15,8m and 54m^3/h volume flow (Wilo Stratos Maxo 50/0.5-16 PN6/10)

Extends from PumpBaseRecord (Definition of pump data).

Information

Impure curves at high pump speed because of inaccurate data of upper and lower limit of pump speed.

cHQN:

0.00000e+00, 0.00000e+00, 1.52394e-06;

0.00000e+00, 5.07893e-05, 0.00000e+00;

-4.42148e-03, 0.00000e+00, 0.00000e+000

cPQN:

8.61711e+01, -3.19500e-01, 3.36762e-04, -1.12746e-07, 1.59435e-11;

0.00000e+00, 0.00000e+00, 4.33938e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 5.09522e-05, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-4.54214e-03, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Type	Name	Default	Description
Real	maxMinHeight (from PumpBaseRecord)	[-1, 16, 1; 0, 16, 1; 5, 12, 0.75; 10, 0.5, 0.5]	maximum and minimum boundaries of pump (Q [m3/h], Hmax [m], Hmin [m])
Modelica.Units.NonSI.AngularVelocity_rpm	maxMinSpeedCurves (from PumpBaseRecord)	[-1, nMax, nMin; 0, nMax, nMin; 5, 0.5*nMax, nMin; 10, nMin, nMin]	maximum and minimum boundaries of pump speed (Q [m3/h], nMax [rev/min], nMin [rev/min])
Modelica.Units.NonSI.AngularVelocity_rpm	nMin (from PumpBaseRecord)	0	minimum pump speed
Modelica.Units.NonSI.AngularVelocity_rpm	nMax (from PumpBaseRecord)	0	maximum pump speed
Real	cHQN (from PumpBaseRecord)	[0, 0, 0; 0, 0, 0; 0, 0, 0]	coefficients for H = f(Q,n) = sum_ij(cHQN[i,j] * Q^i * N^j)
Real	cPQN (from PumpBaseRecord)	[0, 0, 0; 0, 0, 0; 0, 0, 0]	coefficients for P = f(Q,H) = sum_ij(cPQN[i,j] * Q^i * N^j) Wilo coefficients: c4, c5, c6, c7, c8; 0, 0, c1, 0, 0; 0, c2, 0, 0, 0; c3, 0, 0, 0, 0
Real	referenceDataQHPN (from PumpBaseRecord)	[0, 0, 0, 0, 0; 0, 0, 0, 0, 0; 0, 0, 0, 0, 0]	Table with measurement and calculated data for reference. 1. Q in m3/h, 2. H in m, 3. P in W, 4. N in rev/min (power limited pump speed), 5. N in rev/min (set point for pump speed)
