.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN50_H10

Information

Pump for nominal pipe diameter of 50 mm, pump head 10 m and maximum volume flow rate of 32.23 m³/h.

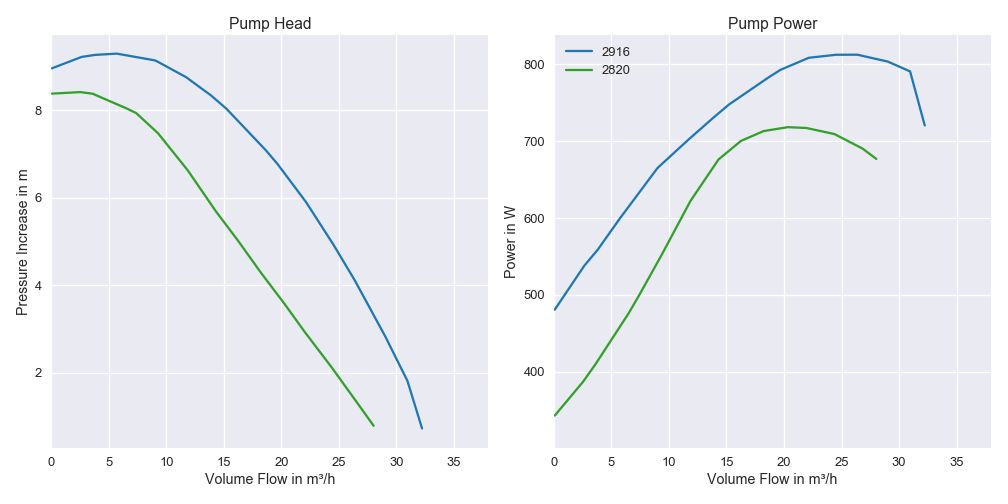

Measurement Data

cHQN:

0.00000e+00, 0.00000e+00, 1.05131e-06;

0.00000e+00, 6.36015e-05, 0.00000e+00;

-1.23177e-02, 0.00000e+00, 0.00000e+00

cPQN:

-2.81160e-02, -1.82546e+01, 2.31237e-02, -9.57285e-06, 1.30624e-09;

0.00000e+00, 0.00000e+00, 4.55386e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, -1.05488e-04, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-1.11489e-02, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions

• 2018-07-02 by Luca Vedda:
  Generated
