recordPump_DN50_H1_10

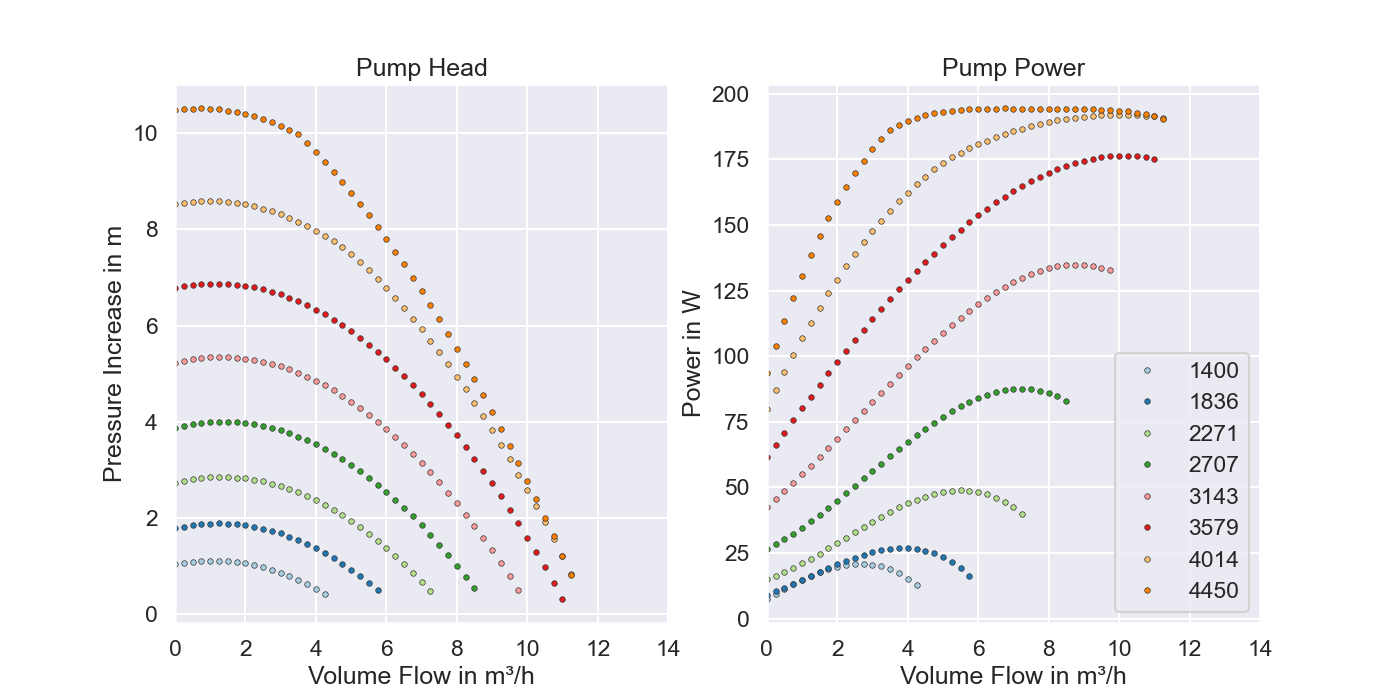

Pump with head 1 to 10.8m and 11.5m^3/h volume flow (Wilo Stratos 50/1-10)

Extends from PumpBaseRecord (Definition of pump data).

Information

Dimension estimate, but inaccuracies occur due to lack of information in the data sheets.

Espacially because of missing information of upper and lower limit of pump speed.

cHQN:

0.00000e+00, 0.00000e+00, 5.29109e-07;

0.00000e+00, 1.41007e-04, -2.69160e-08;

-6.78540e-02, 0.00000e+00, 0.00000e+00

cPQN:

1.27173e+00, 2.83414e-02, -3.32976e-05, 1.37583e-08, -1.49621e-12;

3.36126e+01, -2.82618e-02, 6.76678e-06, 0.00000e+00, 0.00000e+00;

-7.91039e+00, 8.00678e-03, -1.65276e-06, 0.00000e+00, 0.00000e+00;

-4.10723e-01, 0.00000e+00, 2.94088e-08, 0.00000e+00, 0.00000e+00

Type	Name	Default	Description
Real	maxMinHeight (from PumpBaseRecord)	[-1, 16, 1; 0, 16, 1; 5, 12, 0.75; 10, 0.5, 0.5]	maximum and minimum boundaries of pump (Q [m3/h], Hmax [m], Hmin [m])
Modelica.Units.NonSI.AngularVelocity_rpm	maxMinSpeedCurves (from PumpBaseRecord)	[-1, nMax, nMin; 0, nMax, nMin; 5, 0.5*nMax, nMin; 10, nMin, nMin]	maximum and minimum boundaries of pump speed (Q [m3/h], nMax [rev/min], nMin [rev/min])
Modelica.Units.NonSI.AngularVelocity_rpm	nMin (from PumpBaseRecord)	0	minimum pump speed
Modelica.Units.NonSI.AngularVelocity_rpm	nMax (from PumpBaseRecord)	0	maximum pump speed
Real	cHQN (from PumpBaseRecord)	[0, 0, 0; 0, 0, 0; 0, 0, 0]	coefficients for H = f(Q,n) = sum_ij(cHQN[i,j] * Q^i * N^j)
Real	cPQN (from PumpBaseRecord)	[0, 0, 0; 0, 0, 0; 0, 0, 0]	coefficients for P = f(Q,H) = sum_ij(cPQN[i,j] * Q^i * N^j) Wilo coefficients: c4, c5, c6, c7, c8; 0, 0, c1, 0, 0; 0, c2, 0, 0, 0; c3, 0, 0, 0, 0
Real	referenceDataQHPN (from PumpBaseRecord)	[0, 0, 0, 0, 0; 0, 0, 0, 0, 0; 0, 0, 0, 0, 0]	Table with measurement and calculated data for reference. 1. Q in m3/h, 2. H in m, 3. P in W, 4. N in rev/min (power limited pump speed), 5. N in rev/min (set point for pump speed)
