.AixLib.DataBase.Pumps.PumpPolynomialBased.Pump_DN65_H1_16_V26

Information

Pump for nominal pipe diameter of 65 mm, pump head range between 1 m and 16 m and maximum volume flow rate of 26.23 m³/h.

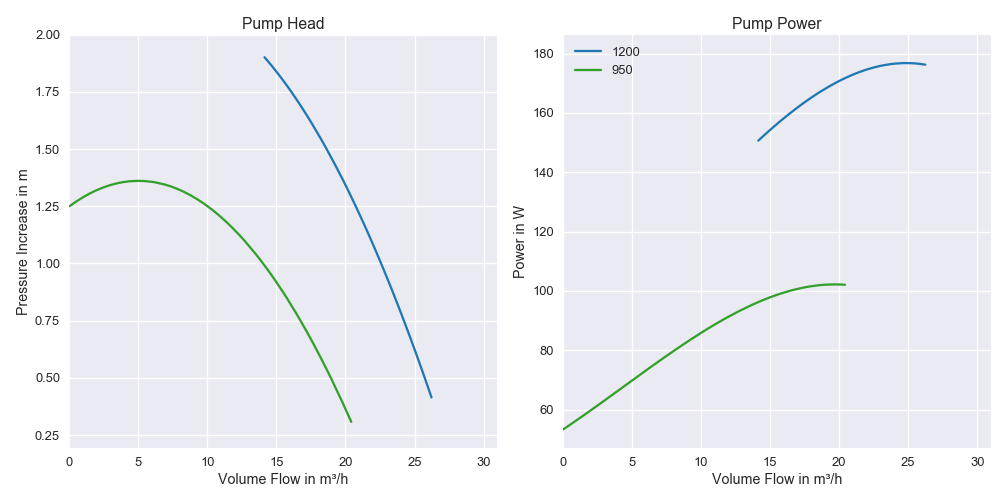

Measurement Data

cHQN:

0.00000e+00, 0.00000e+00, 1.38419e-06;

0.00000e+00, 4.69154e-05, 0.00000e+00;

-4.44085e-03, 0.00000e+00, 0.00000e+00

cPQN:

4.29488e-16, 3.38555e-13, 2.38276e-10, 1.26342e-07, -6.75873e-11;

0.00000e+00, 0.00000e+00, 3.44640e-06, 0.00000e+00, 0.00000e+00;

0.00000e+00, 6.63336e-05, 0.00000e+00, 0.00000e+00, 0.00000e+00;

-4.81313e-03, 0.00000e+00, 0.00000e+00, 0.00000e+00, 0.00000e+00

Revisions

• 2018-09-21 by Luca Vedda:
  Generated
