.AixLib.Electrical.AC.OnePhase.Lines.TwoPortRLC

Information

This model represents a series of two resistive-inductive impedances and a capacitance that connects two AC single phase interfaces. This model can be used to represent a cable in a AC grid.

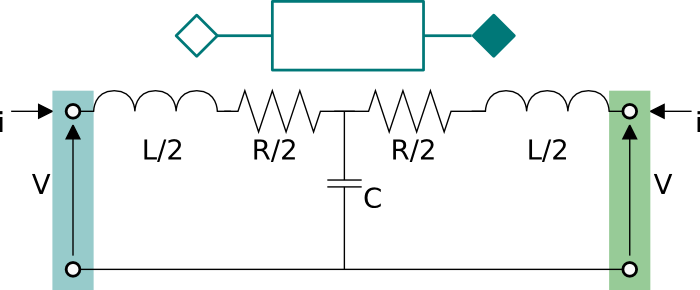

The model represents the lumped resistances and capacity, as a T-model, as shown in the figure below.

As can be seen in the figure, the resistance R and the inductance L are split in two halves and the capacitance is located in the center. The capacitance in the center is optional. If it is not present, set the parameter C=0. The model is either dynamic or static depending on the presence of the capacitive effect.

Revisions

• November 8, 2016, by Michael Wetter:
  Added replaceable to terminal redeclaration as they are redeclared by AixLib.Electrical.AC.ThreePhasesBalanced.Lines.TwoPortRLC.
• May 26, 2016, by Michael Wetter:
  Moved function call to PhaseSystem.thetaRef out of derivative operator as this is not yet supported by JModelica.
• March 9, 2015, by Marco Bonvini:
  Added parameter for start value of the voltage.
• August 5, 2014, by Marco Bonvini:
  Revised model and documentation.
