.AixLib.Electrical.AC.OnePhase.Lines.TwoPortResistance

Information

This model represents a resistance that connects two AC one phase interfaces. This model can be used to represent a single phase cable in a AC grid.

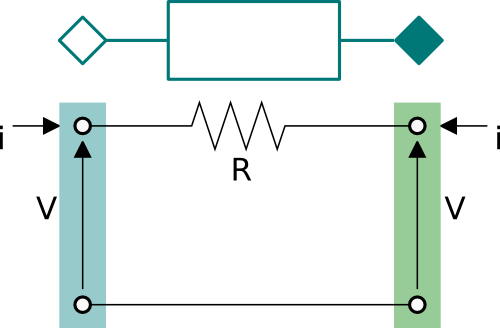

The model represents the lumped resistance as shown in the figure below.

Revisions

• January 29, 2019, by Michael Wetter:
  Added replaceable for terminal.
• January 14, 2015, by Marco Bonvini:
  Added equation that represents Joule losses
• August 5, 2014, by Marco Bonvini:
  Revised model and documentation.
