.AixLib.Electrical.AC.ThreePhasesUnbalanced.Conversion.ACACConverter

Information

This is an AC AC converter, based on a power balance between both circuit sides. The parameter conversionFactor defines the ratio between the RMS voltages

V₂ = conversionFactor * V₁

where V₁ and V₂ are the RMS voltages at the primary and secondary sides of the transformer (connector N and P respectively).

The loss of the converter is proportional to the power transmitted. The parameter eta is the efficiency of the transfer. The loss is computed as

P_loss = (1-η) P_tr

where P_tr is the power transmitted. The model is bi-directional and the power can flow from both the primary to the secondary and vice-versa. Furthermore, reactive power on both side are set to 0.

Configuration:

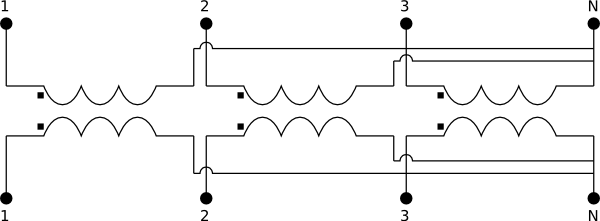

The image below describes the connection of the windings.

Note:

This model reuses models from AixLib.Electrical.AC.OnePhase.Conversion.ACACConverter.

See AixLib.Electrical.AC.ThreePhasesUnbalanced.Conversion.BaseClasses.PartialConverterYY for details on the connections.

Revisions

• October 3, 2014, by Marco Bonvini:
  Revised documentation.
• June 6, 2014, by Marco Bonvini:
  First implementation.
