Model of a transformer with D connection primary side and D
connection secondary side
Partial model that represents a three-phase unbalanced
transformer with delta connection on both primary and secondary side.

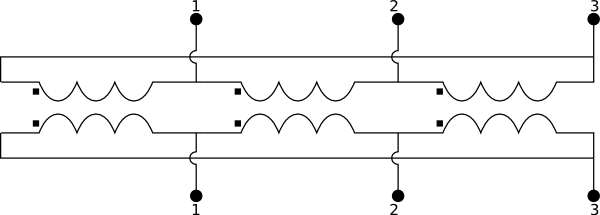

The image below describes the connection of the windings.
-
February 26, 2016, by Michael Wetter:
Added adapter for
#426.
-
August 27, 2014, by Marco Bonvini:
Revised documentation.
-
June 6, 2014, by Marco Bonvini:
First implementation.
