.AixLib.Electrical.AC.ThreePhasesUnbalanced.Conversion.BaseClasses.PartialConverterStepUpYD

Information

Partial model that represents a three-phase unbalanced transformer with Y connection on the primary and delta connection on the secondary side. The configuration is for voltage step up.

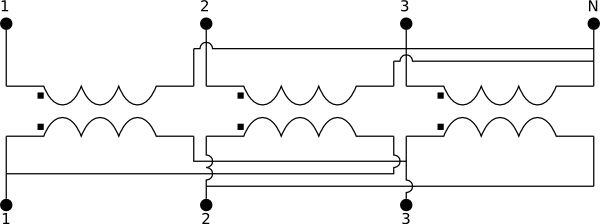

The image below describes the connection of the windings.

Revisions

• February 26, 2016, by Michael Wetter:
  Added adapter for #426.
• August 27, 2014, by Marco Bonvini:
  Revised documentation.
• June 6, 2014, by Marco Bonvini:
  First implementation.
