.AixLib.Electrical.Transmission.Grids.IEEE_34_AL120

Information

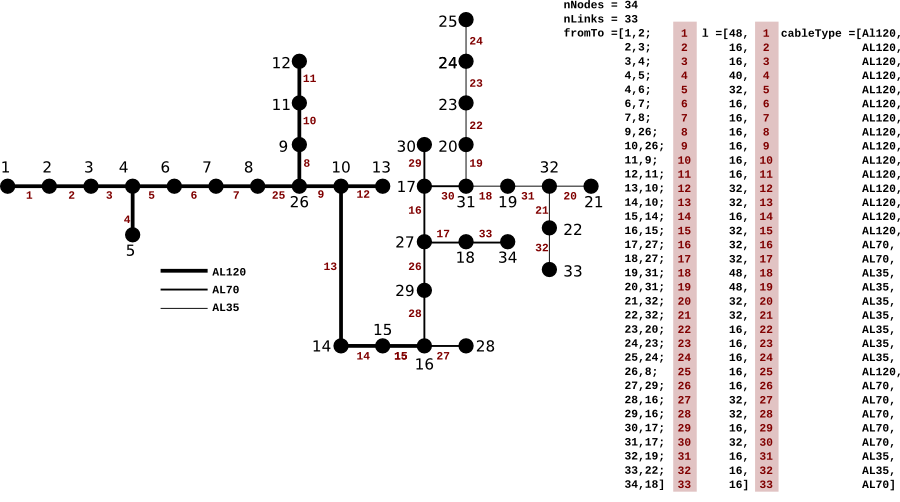

This model represents a grid inspired by the IEEE 34 node test feeder. In this example, the cable types and lengths have been modified in order to represent a typical distribution feeder.

The following three type of cables are in the grid: AL120, AL70, and Al35.

Revisions

• September 23, 2014, by Marco Bonvini:
  Added redeclare statement needed to specify the type of cables used in the array.
• June 3, 2014, by Marco Bonvini:
  Added User's guide.
