modelPressureDropPH
Calculates the pressure drop in a radiator according to manufacturer data
Extends from Modelica.Fluid.Interfaces.PartialTwoPortTransport (Partial element transporting fluid between two ports without storage of mass or energy).
Information
Overview
Model for calculating the pressure drop.
Concept
The pressure drop is calculated according to the following equation [1].

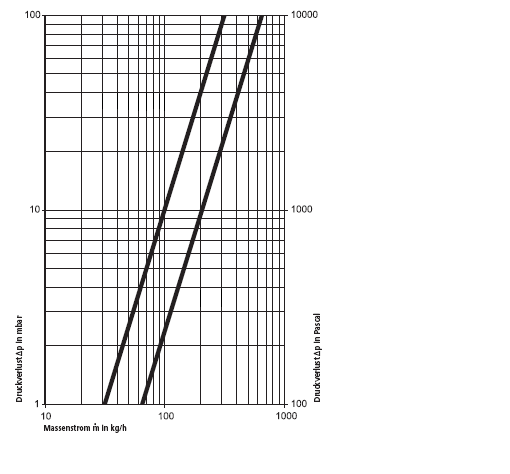

In order to determine K, manufacturer data is used and :
With the help onf the Matlab Curve Fit Toolbox a curve y = K*x^2 is fitted through several selected points.
Reference
Source:
- [1] Ross, Hans: "Hydraulik der Wasserheizung", Oldenbourg Indunstrieverlag GmbH, 2002.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | m | 2131 | Pressure drop coefficient, delta_p[Pa] = tubeLength*m*m_flow[kg/s]^n |
| Real | n | 1.7 | Pressure drop exponent, delta_p[Pa] = tubeLength*m*m_flow[kg/s]^n |
| Modelica.Units.SI.Length | tubeLength | 10 | total length of tube |
| Assumptions | |||
| Boolean | allowFlowReversal (from PartialTwoPort) | system.allowFlowReversal | = true to allow flow reversal, false restricts to design direction (port_a -> port_b) |
| Advanced | |||
| Medium.AbsolutePressure | dp_start (from PartialTwoPortTransport) | 0.01*system.p_start | Guess value of dp = port_a.p - port_b.p |
| Medium.MassFlowRate | m_flow_start (from PartialTwoPortTransport) | system.m_flow_start | Guess value of m_flow = port_a.m_flow |
| Medium.MassFlowRate | m_flow_small (from PartialTwoPortTransport) | if system.use_eps_Re then system.eps_m_flow*system.m_flow_nominal else system.m_flow_small | Small mass flow rate for regularization of zero flow |
| Advanced › Diagnostics | |||
| Boolean | show_T (from PartialTwoPortTransport) | true | = true, if temperatures at port_a and port_b are computed |
| Boolean | show_V_flow (from PartialTwoPortTransport) | true | = true, if volume flow rate at inflowing port is computed |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Fluid.Interfaces.FluidPort_a | port_a (from PartialTwoPort) | Fluid connector a (positive design flow direction is from port_a to port_b) | |
| Modelica.Fluid.Interfaces.FluidPort_b | port_b (from PartialTwoPort) | Fluid connector b (positive design flow direction is from port_a to port_b) |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Fluid.System | system (from PartialTwoPort) | System wide properties | |
| Medium.MassFlowRate | m_flow (from PartialTwoPortTransport) | Mass flow rate in design flow direction | |
| SI.Pressure | dp (from PartialTwoPortTransport) | Pressure difference between port_a and port_b (= port_a.p - port_b.p) | |
| SI.VolumeFlowRate | V_flow (from PartialTwoPortTransport) | m_flow/Modelica.Fluid.Utilities.regStep(m_flow, Medium.density(state_a), Medium.density(state_b), m_flow_small) | Volume flow rate at inflowing port (positive when flow from port_a to port_b) |
| Medium.Temperature | port_a_T (from PartialTwoPortTransport) | Modelica.Fluid.Utilities.regStep(port_a.m_flow, Medium.temperature(state_a), Medium.temperature(Medium.setState_phX(port_a.p, port_a.h_outflow, port_a.Xi_outflow)), m_flow_small) | Temperature close to port_a, if show_T = true |
| Medium.Temperature | port_b_T (from PartialTwoPortTransport) | Modelica.Fluid.Utilities.regStep(port_b.m_flow, Medium.temperature(state_b), Medium.temperature(Medium.setState_phX(port_b.p, port_b.h_outflow, port_b.Xi_outflow)), m_flow_small) | Temperature close to port_b, if show_T = true |
Revisions
-
June 15, 2017 by Tobias Blacha:
Moved into AixLib -
June 10, 2011 by Ana Constantin:
Implemented.
