modelPressureDropRadiator
Calculates the pressure drop in a radiator according to manufacturer data
Extends from AixLib.Fluid.Interfaces.PartialTwoPortTransport (Partial element transporting fluid between two ports without storage of mass or energy).
Information
Overview
Calculates the pressure drop in a radiator according to manufacturer data
Concept
The pressure drop is calculated according to the following equation [1].
In order to determine K, manufacturer data is used and :

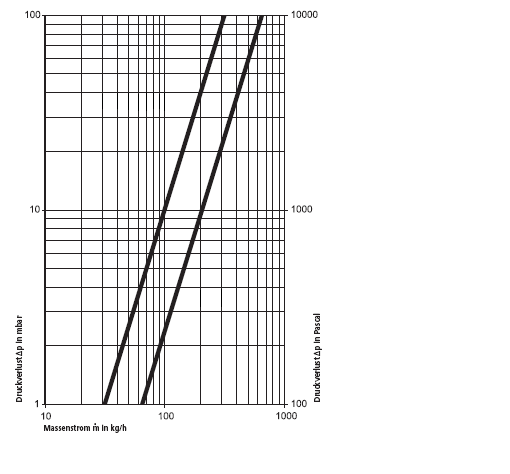

With the help of the Matlab Curve Fit Toolbox a curve y = K*x^2 is fitted through several selected points.
References
[1] Ross, Hans: "Hydraulik der Wasserheizung", Oldenbourg Industrieverlag GmbH, 2002.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | PD | Pressure drop coefficient, delta_p[Pa] = PD*m_flow[kg/s]^2 | |
| Assumptions | |||
| Boolean | allowFlowReversal (from PartialTwoPort) | true | = false to simplify equations, assuming, but not enforcing, no flow reversal |
| Advanced | |||
| Modelica.Units.SI.PressureDifference | dp_start (from PartialTwoPortTransport) | 0 | Guess value of dp = port_a.p - port_b.p |
| Medium.MassFlowRate | m_flow_start (from PartialTwoPortTransport) | 0 | Guess value of m_flow = port_a.m_flow |
| Medium.MassFlowRate | m_flow_small (from PartialTwoPortTransport) | Small mass flow rate for regularization of zero flow | |
| Advanced › Diagnostics | |||
| Boolean | show_T (from PartialTwoPortTransport) | true | = true, if temperatures at port_a and port_b are computed |
| Boolean | show_V_flow (from PartialTwoPortTransport) | true | = true, if volume flow rate at inflowing port is computed |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Fluid.Interfaces.FluidPort_a | port_a (from PartialTwoPort) | Fluid connector a (positive design flow direction is from port_a to port_b) | |
| Modelica.Fluid.Interfaces.FluidPort_b | port_b (from PartialTwoPort) | Fluid connector b (positive design flow direction is from port_a to port_b) |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Medium.MassFlowRate | m_flow (from PartialTwoPortTransport) | Mass flow rate in design flow direction | |
| Modelica.Units.SI.PressureDifference | dp (from PartialTwoPortTransport) | Pressure difference between port_a and port_b (= port_a.p - port_b.p) | |
| Modelica.Units.SI.VolumeFlowRate | V_flow (from PartialTwoPortTransport) | m_flow/Modelica.Fluid.Utilities.regStep(m_flow, Medium.density(Medium.setState_phX(p = port_a.p, h = inStream(port_a.h_outflow), X = inStream(port_a.Xi_outflow))), Medium.density(Medium.setState_phX(p = port_b.p, h = inStream(port_b.h_outflow), X = inStream(port_b.Xi_outflow))), m_flow_small) | Volume flow rate at inflowing port (positive when flow from port_a to port_b) |
| Medium.Temperature | port_a_T (from PartialTwoPortTransport) | Modelica.Fluid.Utilities.regStep(port_a.m_flow, Medium.temperature(Medium.setState_phX(p = port_a.p, h = inStream(port_a.h_outflow), X = inStream(port_a.Xi_outflow))), Medium.temperature(Medium.setState_phX(port_a.p, port_a.h_outflow, port_a.Xi_outflow)), m_flow_small) | Temperature close to port_a, if show_T = true |
| Medium.Temperature | port_b_T (from PartialTwoPortTransport) | Modelica.Fluid.Utilities.regStep(port_b.m_flow, Medium.temperature(Medium.setState_phX(p = port_b.p, h = inStream(port_b.h_outflow), X = inStream(port_b.Xi_outflow))), Medium.temperature(Medium.setState_phX(port_b.p, port_b.h_outflow, port_b.Xi_outflow)), m_flow_small) | Temperature close to port_b, if show_T = true |
Revisions
-
October, 2016 by Peter Remmen:
Transfer to AixLib. -
October 7, 2013 by Ole Odendahl:
Formatted documentation appropriately -
June 10, 2011 by Ana Constantin:
Implemented.
