modelReabsorption
Divide inflow to outflow and reabsorption
Extends from Icons.Reabsorption.
Information
Hydraulic Reabsorption

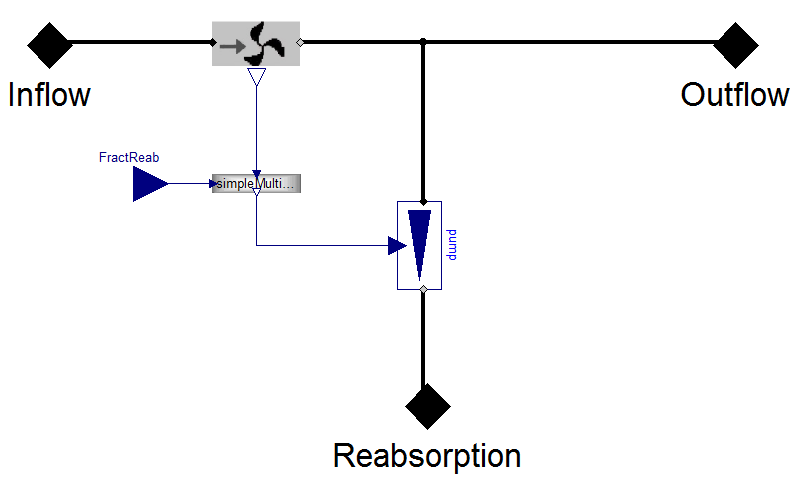

If useOutflowMin=false then the next schema is used.

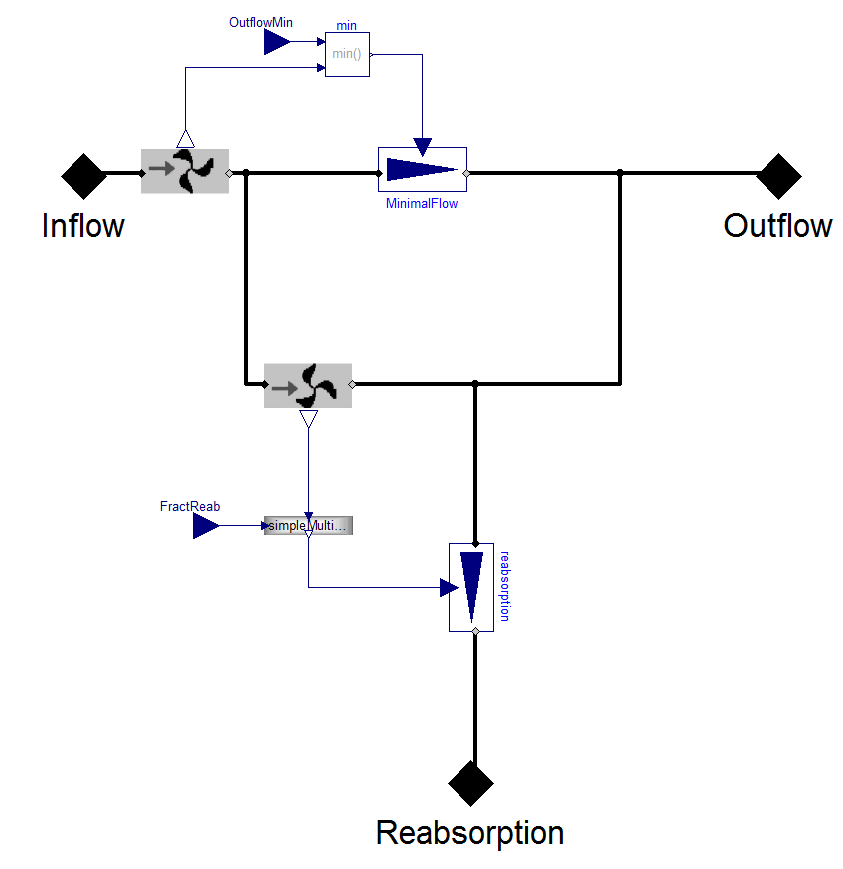

If useOutflowMin=true then the extended schema is used:
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Types.VolumeFlowRate | OutflowMin | 0 | Minimal outflow if useExternalOutflowMin=false |
| External inputs/outputs | |||
| Boolean | useExternalOutflowMin | false | =true, if minimal outflow is garanted |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Hydraulic.Interfaces.HydraulicPort_a | Inflow | ||
| Hydraulic.Interfaces.HydraulicPort_b | Outflow | ||
| Hydraulic.Interfaces.HydraulicPort_b | Reabsorption | ||
| Types.RealIO.FractionInput | FractReab | ||
| Types.RealIO.VolumeFlowRateInput | outflowMin | om |
Revisions
2009-2010
Marek Matejak, Charles University, Prague, Czech Republic
