.Buildings.Controls.OBC.Shade.Shade_T

Information

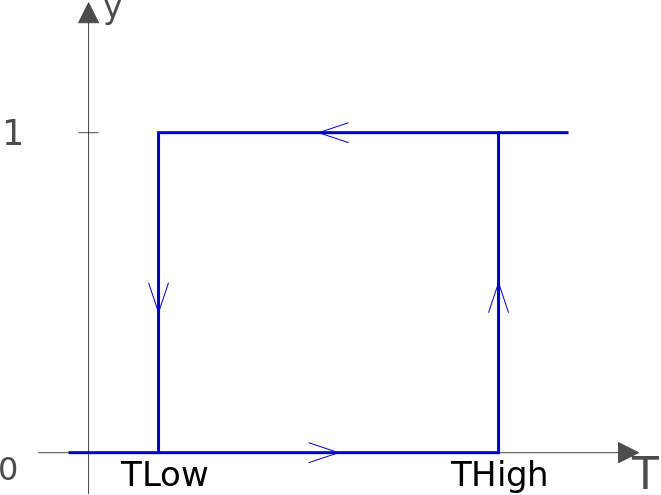

Block that outputs a shade control signal y ∈ {0, 1} as follows:

• When y=0 and the input T becomes greater than the parameter THigh, the output switches to y=1.
• When y=1 and the input T becomes less than the parameter TLow, the output switches to y=0.

Revisions

• June 8, 2018, by Michael Wetter:
  Reimplemented model to make it analogous to the hysteresis block.
• June 01, 2018, by Milica Grahovac:
  First implementation.
