.Buildings.Controls.OBC.Utilities.SetPoints.SupplyReturnTemperatureReset

Information

This block computes the set point temperatures for the supply and return water temperature. The set point for the zone air temperature can be an input to the model. It allows to use this model with systems that have night set back.

If used to reset the temperature in a heating system, the parameter dTOutHeaBal can be used to shift the heating curve to take into account that heat gains from solar, equipment and people make up for some of the transmission losses. For example, in energy efficient houses, the heating may not be switched on if the outside air temperature is greater than 12°C, even if a zone temperature of 20°C is required. In such a situation, set dTOutHeaBal=20-12=8 Kelvin to shift the heating curve.

Typical usage

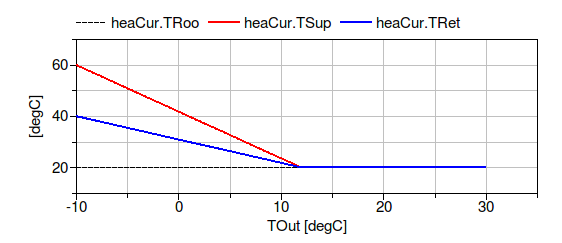

The figure below shows a typical usage for a hot water temperature reset for a heating system. The parameters of the block heaCur are for a heating system with 60°C supply water temperature and 40°C return water temperature at an outside temperature of -10°C and a room temperature of 20°C. The offset for the temperature reset is 8 Kelvin, i.e., above 12°C outside temperature, there is no heating load. The figure shows the computed supply and return water temperatures.

Revisions

• October 21, 2021, by Michael Wetter:
  Corrected icon.
• February 8, 2021, by Michael Wetter:
  Renamed to Buildings.Controls.OBC.Utilities.SetPoints.SupplyReturnTemperatureReset and reimplemented using elementary CDL blocks.
  This is for issue 2355.
• November 12, 2020, by Michael Wetter:
  Reformulated to remove dependency to Modelica.Units.SI.
  This is for issue 2243.
• January 3, 2020, by Jianjun Hu:
  Changed name from HotWaterTemperatureReset to SupplyReturnTemperatureReset. This is for #860.
• January 10, 2017, by Milica Grahovac:
  First CDL implementation.
• May 29, 2014, by Michael Wetter:
  Removed undesirable annotation Evaluate=true.
• February 13, 2013, by Michael Wetter:
  Corrected error that led to wrong results if the zone air temperature is different from its nominal value TZon_nominal. See ticket #74.
• November 21, 2011, by Michael Wetter:
  Improved documentation.
• February 5, 2009 by Michael Wetter:
  First implementation.
