.Buildings.DHC.ETS.Heating.Indirect

Information

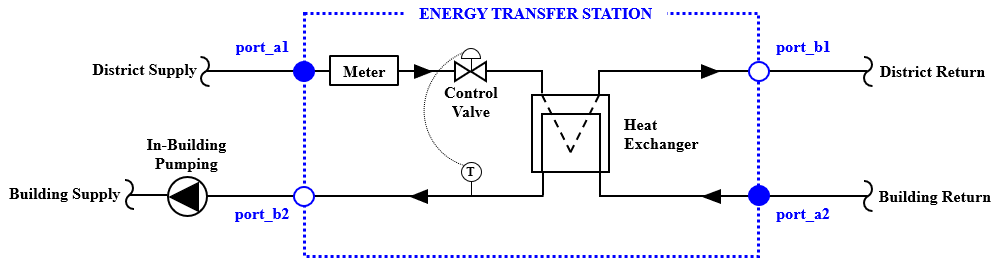

Indirect heating energy transfer station (ETS) model that controls the building chilled water supply temperature by modulating a primary control valve on the district supply side. The design is based on a typical district heating ETS described in ASHRAE's District Heating Guide. As shown in the figure below, the building pumping design (constant/variable) is specified on the building side and not within the ETS.

Reference

American Society of Heating, Refrigeration and Air-Conditioning Engineers. (2013). Chapter 5: Consumer Interconnection. In District Heating Guide.

Revisions

• March 27, 2024, by David Blum:
  Update icon and fix port orientation to align with convention.
  This is for issue #3606.
• January 8, 2024, by David Blum:
  Correct documentation to describe heating. This is for issue 3628.
• April 7, 2023, by David Blum:
  First implementation.
