.Buildings.Electrical.AC.OnePhase.Storage.Examples.AcBattery

Information

This example shows how to use an AC battery model.

The example compares three different batteries. The battery named bat_ideal is ideal and it does not account for any losses. The battery named bat_loss_acdc accounts for conversion losses when converting between AC and DC. The battery named bat accounts for both conversion losses and inefficiencies during both the charge and discharge phases.

All the batteries start from the same initial condition, which is 50% of their total capacity. The batteries are charged and discharged in the same way. The input signal pow.y is the power that each battery should store or release. The signal has a duty cycle equal to 50%. Therefore, if there are no losses the same amount of power stored into the battery will be released and after one cycle the State of Charge (SOC) has to be equal.

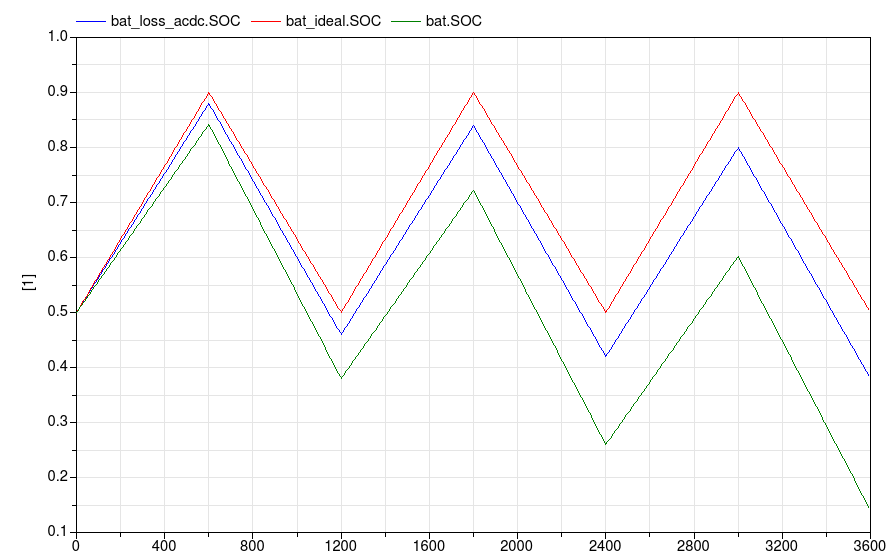

The image below shows the SOC of the three batteries.

As expected the red line (ideal battery) maintains the SOC over the time. The other two batteries loose some of the initial energy due to the losses.

Revisions

• Sept 19, 2014, by Marco Bonvini:
  First implementation.
