.Buildings.Electrical.AC.ThreePhasesUnbalanced.Lines.TwoPortMatrixRLC_N

Information

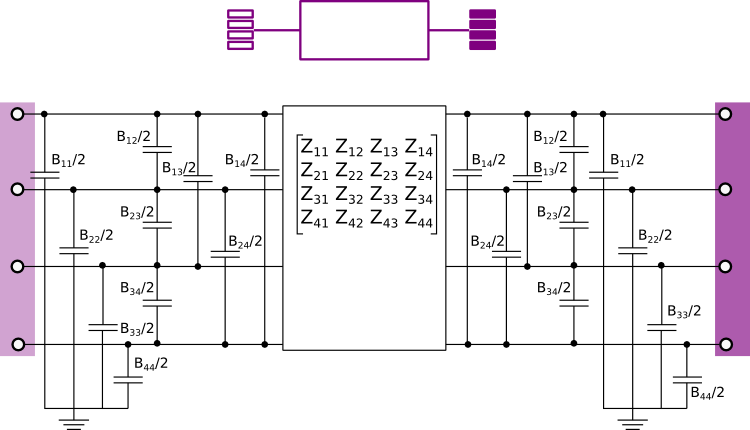

RLC line model (π-model) that connects two AC three-phase unbalanced interfaces and neutral line. This model can be used to represent a cable in a three-phase unbalanced AC system.

The model is parameterized with an impedance matrix Z and an admittance matrix B. The impedance matrix is symmetric, and therefore only the upper triangular part of the matrix needs to be defined.

This model is a more detailed version of the model Buildings.Electrical.AC.ThreePhasesUnbalanced.Lines.TwoPortMatrixRL_N that includes the capacitive effects of the lines.

Note

The fourth line is the neutral one.
