This abstract grid model specifies the topology of the network by
- the number of nodes,
- the number of links,
- the length of links, and
- the connection between links and nodes.

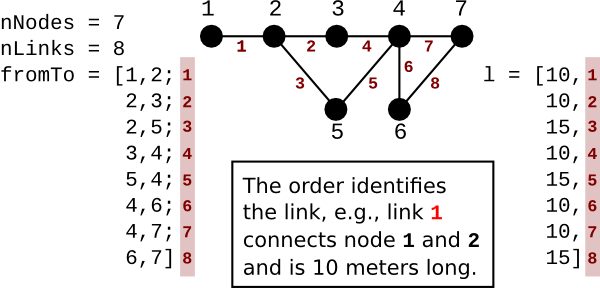

The picture below describes the meaning of the
values contained in the matrices.
-
September 23, 2014, by Marco Bonvini:
Revised model structure. Now the type of the cable is replaceable
so it's possible to use either low voltage or medium voltage cable.
-
June 3, 2014, by Marco Bonvini:
Added User's guide.
