.Buildings.ThermalZones.Detailed.Examples.FFD.ForcedConvection

Information

This model tests the coupled simulation of Buildings.ThermalZones.Detailed.CFD with the FFD program by simulating the ventilation with forced convection in an empty room. Figure (a) shows the schematic of the FFD simulation and Figure (b) shows streamlines and contours of the horizontal velocity U as simulated by the FFD.

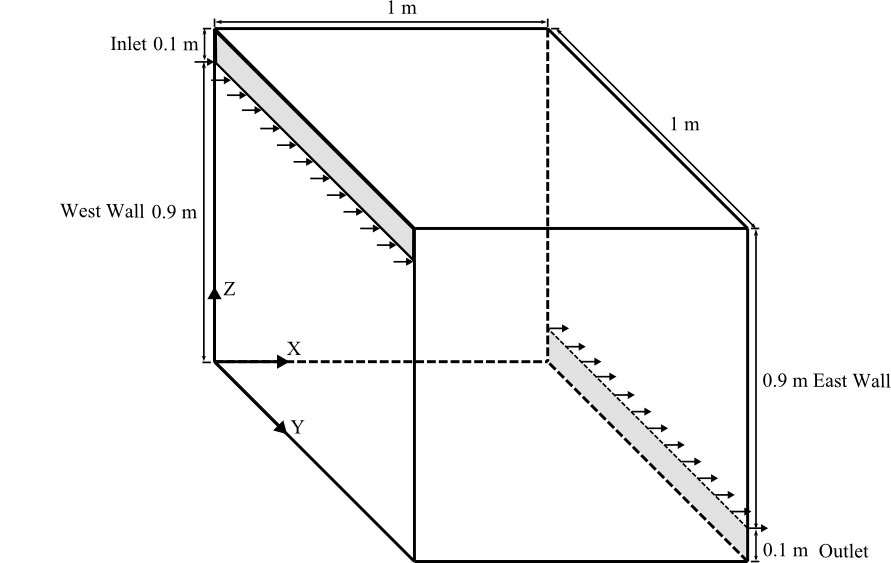

Figure (a)

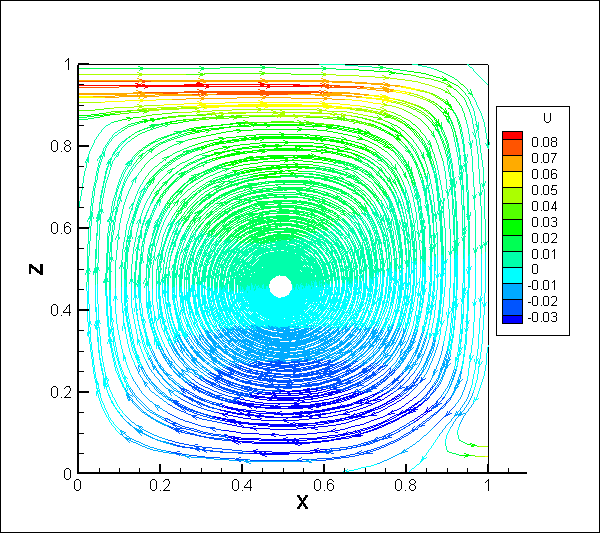

Figure (b)

Revisions

• December 31, 2013, by Wangda Zuo:
  First implementation.
