modelProjectedShadowLength
Test model for projected shadow length
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information

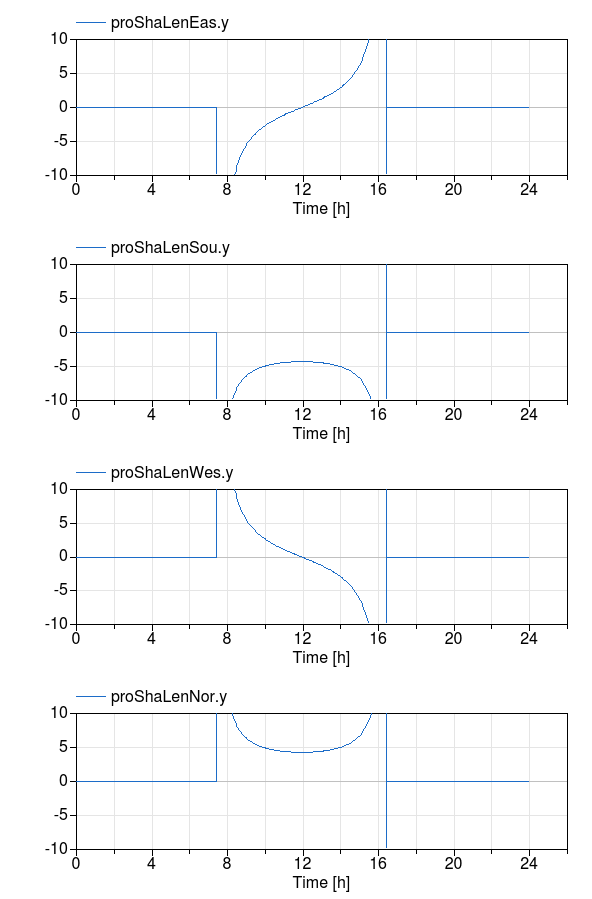

This example computes how far a shadow of a 2 meter high object is in different directions. The figure below shows this length for January 1 in Chicago. Note that the length of the shadow is negative if the azimuth is selected to be south because the shadow is towards the north.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Length | h | 2 | Height of object |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Buildings.BoundaryConditions.SolarGeometry.ProjectedShadowLength | proShaLenEas | Projected shadow length facing east | |
| Buildings.BoundaryConditions.SolarGeometry.ProjectedShadowLength | proShaLenSou | Projected shadow length facing south | |
| Buildings.BoundaryConditions.SolarGeometry.ProjectedShadowLength | proShaLenWes | Projected shadow length facing West | |
| Buildings.BoundaryConditions.SolarGeometry.ProjectedShadowLength | proShaLenNor | Projected shadow length facing North |
Revisions
-
November 14, 2015, by Michael Wetter:
First implementation.
