modelPlugFlowULg
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
The example contains experimental data from a real district heating network.
This model compares the results with the original Modelica Standard Library pipes.
The pipes' temperatures are not initialized. Therefore, results of outflow temperature before approximately the first 10000 seconds should not be considered.

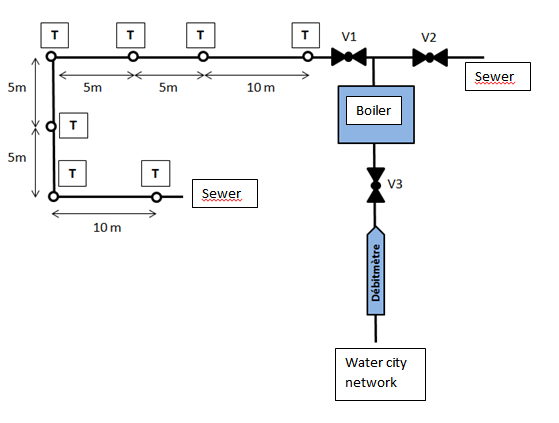

Test bench schematic
Calibration
There are some uncertainties about the heat loss coefficient between pipe and
surrounding air as well as regarding the heat conductivity of the insulation
material.
With the
given data, the length specific thermal resistance is R = 2.164
((m K)/W), calculated as follows:
R=((1/(2*pipe.kIns)*log((0.0603+2*pipe.dIns)/(0.0603)))+1/(5*(0.0603+2*pipe.dIns)))/Modelica.Constants.pi
U = 1/R = 0.462 W/(m K)
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.MassFlowRate | m_flow_nominal | 1 | Nominal mass flow rate, used for regularization near zero flow |
| Modelica.Units.SI.Temperature | T_start_in | pipeDataULg.T_start_in + 273.15 | Initial temperature at pipe inlet |
| Modelica.Units.SI.Temperature | T_start_out | pipeDataULg.T_start_out + 273.15 | Initial temperature at pipe outlet |
| Modelica.Units.SI.SpecificHeatCapacity | cp_default | Medium.specificHeatCapacityCp(state = sta_default) | Heat capacity of medium |
| Medium.ThermodynamicState | sta_default | Medium.setState_pTX(T = Medium.T_default, p = Medium.p_default, X = Medium.X_default) | Default medium state |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Fluid.Sources.MassFlowSource_T | WaterCityNetwork | Mass flow source | |
| Fluid.HeatExchangers.Heater_T | Boiler | Boiler with adjustable outlet temperature | |
| Fluid.Sources.Boundary_pT | Sewer1 | Mass flow sink | |
| Fluid.Sensors.TemperatureTwoPort | senTem_out | Temperature sensor | |
| Fluid.Sensors.TemperatureTwoPort | senTem_in | Temperature sensor | |
| Modelica.Blocks.Sources.CombiTimeTable | DataReader | Measurement data | |
| Modelica.Blocks.Math.UnitConversions.From_degC | Tout | Ambient temperature in degrees | |
| Buildings.HeatTransfer.Sources.FixedTemperature | TBou | Fixed boundary condition | |
| Modelica.Blocks.Math.UnitConversions.From_degC | Tin | Input temperature into pipe | |
| Data.PipeDataULg151202 | pipeDataULg | ||
| Modelica.Blocks.Math.Gain | gain | Gain to test variations of mass flow rate within measurement uncertainty | |
| PlugFlowPipe | pipe | Pipe | |
| Fluid.Sensors.EnthalpyFlowRate | senEntOut | Outlet enthalpy sensor | |
| Modelica.Blocks.Math.Add | heatLossSim | Difference between inflowing and outflowing enthalpy streams | |
| Modelica.Blocks.Continuous.Integrator | eneLosInt | Integrate model error | |
| Fluid.Sensors.EnthalpyFlowRate | senEntIn | Inlet enthalpy sensor | |
| Modelica.Blocks.Math.Add | delT | Temperature difference between in- and outlet | |
| Modelica.Blocks.Math.Product | heaLosMea | Heat loss from measurement (mflow*cp*DeltaT) | |
| Modelica.Blocks.Math.Gain | gain3 | Specific heat of water | |
| Modelica.Blocks.Math.Feedback | heaLosDiff | Difference between simulated and measurement enthalpy flow difference | |
| Modelica.Blocks.Sources.Constant | Tamb | Ambient temperature in Kelvin |
