functionmotorEfficiencyCurve
This function generates the generic curve for motor efficiency based on rated motor power
Extends from Modelica.Icons.Function (Icon for functions).
Information

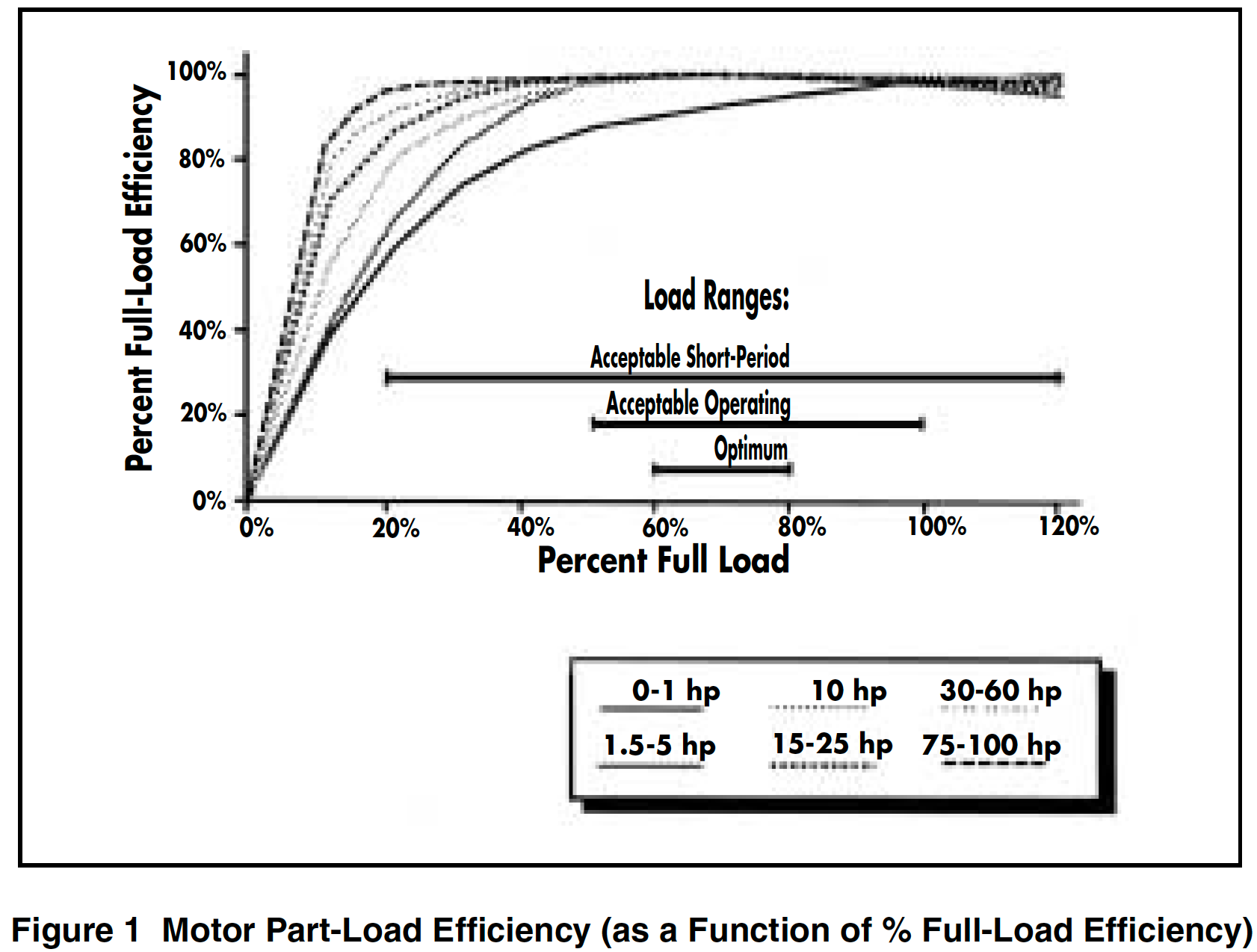

This function generates a generic motor efficiency curve based on the rated motor power input and maximum motor efficiency according to U.S. DOE (2014) (shown below). It returns a constant array if the rated power is unavailable.
References
U.S. DOE (2014). Determining Electric Motor Load and Efficiency. URL: https://www.energy.gov/sites/prod/files/2014/04/f15/10097517.pdf
Inputs
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Power | P_nominal | Rated input power of the motor | |
| Modelica.Units.SI.Efficiency | eta_max | Maximum motor efficiency |
Outputs
| Type | Name | Default | Description |
|---|---|---|---|
| Buildings.Fluid.Movers.BaseClasses.Characteristics.efficiencyParameters_yMot | motorEfficiency_yMot | Motor efficiency vs. motor part load ratio |
Revisions
- April 5, by Hongxiang Fu:
First implementation. This is for #2668.
