modelBeamDepthInRoom
Test model for the depth of the solar beam in the room
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information

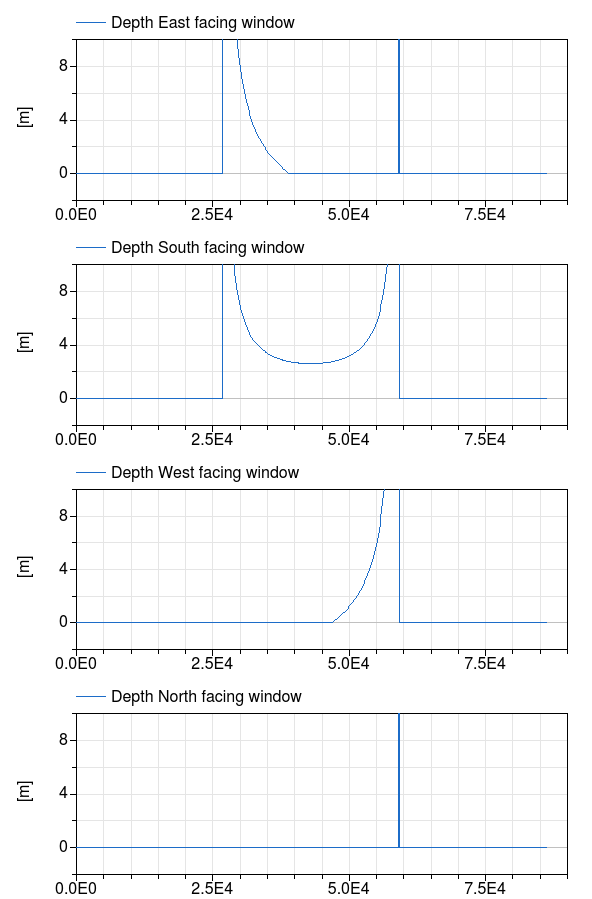

This example computes how far from the wall, measured perpendicular to the wall, hits the workplane. The figure below shows this length for January 1 in Chicago for windows with different orientations. The spike at sunset is a numerical artifact that has no physical significance.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Length | hApe | 2.0 | Upper height of aperature above ground |
| Modelica.Units.SI.Length | depOve | 1.0 | Depth of overhang, meausured from other exterior surface of aperature (set to 0 if no overhang) |
| Modelica.Units.SI.Length | gapOve | 0.5 | Gap between upper height of aperature and lower height of overhang (set to 0 if no overhang) |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Buildings.HeatTransfer.Windows.BeamDepthInRoom | winEas | Beam depth at window in East wall | |
| Buildings.HeatTransfer.Windows.BeamDepthInRoom | winSou | Beam depth at window in South wall | |
| Buildings.HeatTransfer.Windows.BeamDepthInRoom | winWes | Beam depth at window in West wall | |
| Buildings.HeatTransfer.Windows.BeamDepthInRoom | winNor | Beam depth at window in North wall |
Revisions
-
November 14, 2015, by Michael Wetter:
First implementation.
