modelBrokenTransitionPull

The outflow from A is proportional to the inflow to B
Diagram of BrokenTransitionPullOpen the diagram
▶ Check in your browser

Extends from Interfaces.Basics.GenericFlow (Flow Template with two FlowPorts), Interfaces.Basics.Interaction4SO (Output connectors for interaction elements reporting rates), Icons.Interaction (Icon for interactional flow classes).

Information

This information is part of the Business Simulation Library (BSL). Please support this work and ► donate.

This is a variant of the classical broken flow (→BrokenTransition) structure that allows for a different parameterization:  In this component the given value for the rate (rate or u_rate) relates to the inflow to stock B, while the factor of proportionality (factor or u_factor) determines the outflow from stock A that is necessary for this process.

A typical application would be to have a given rate of production (here the stock B would be the stock of finished goods) which needs an outflow from the stock of materials that is proprotional to the rate of production according to a factor determined by the bill of materials.

Hence:

rate of outflow from A = rate of inflow to B × factor of proportionality

The factor of proportionality will be given in base units of A per base units of B, so that the resulting outflow from A will have proper units [base units for a flow of A].

Implementation

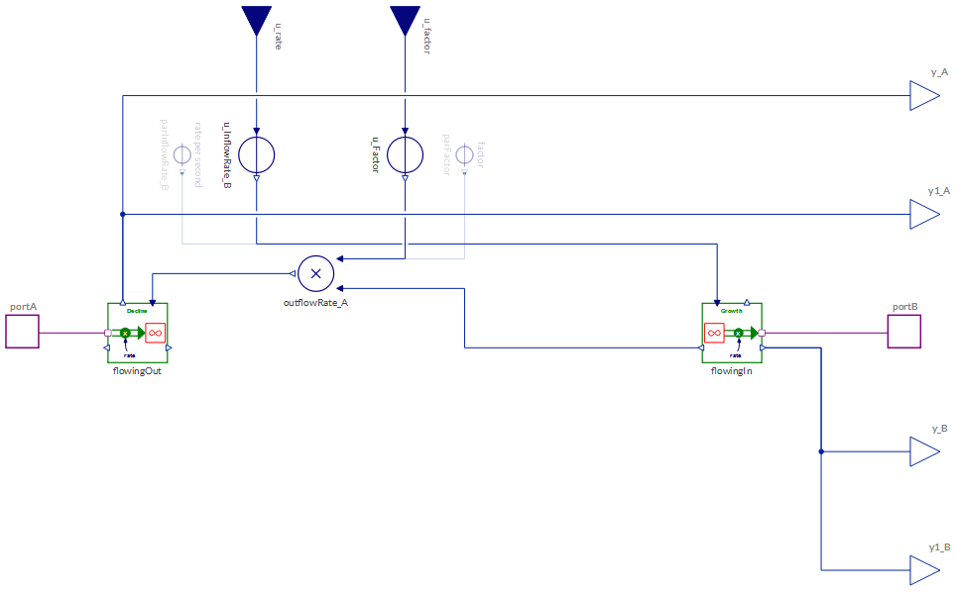

Diagram for BrokenTransitionPull

Notes

  • Unlike the classical broken flow structure, setting the rate for the stock B might not take into account the availability of material in the stock A; so this has to be taken care of by the modeler explicitly.

  • Great care has to be taken entering the factor as it needs to be given in base units of stock A per base units of stock B. If the unit attribute is left an empty string (default), then fitting units will automatically be deduced effectively short-circuiting unit checks.

  • To more robustly specify conversion factors, upon useExplicitRatio = true a constant ratio inputA per outputB can alternatively be given, where inputA and outputB will have units according to OutputType_A and OutputType_B, respectively.

See also

BrokenTransition, Transition

Parameters

TypeNameDefaultDescription
OutputType_BrateunspecifiedConstant rate of inflow to the stock B
Realfactor1Constant factor of proportionality to be multiplied with the inflow to B [base units A/base units B]
OutputType_AinputA1Constant input of A to specify the conversion factor as the ratio inputA : outputB
OutputType_BoutputB1Constant output of B to specify the conversion factor as the ratio inputA : outputB
Structural Parameters
BooleanhasConstantFactorfalse= true, if the factor is to be given by the constant parameter
BooleanhasConstantRatefalse= true, if the outflow rate for A is to be given by the constant parameter
BooleanuseExplicitRatiofalse= true, if instead of a constant factor a constant ratio of output per input is to be entered

Connectors

TypeNameDefaultDescription
Connectors.FlowPortportA (from GenericFlow)Flow from/to Stock A
Connectors.FlowPortportB (from GenericFlow)Flow to/from Stock B
RealOutput_By_B (from Interaction4SO)Rate for flow to and from B (positive value indicates inflow)
RealOutput_By1_B (from Interaction4SO)Rate for flow to and from B (positive value indicates inflow)
RealOutput_Ay1_A (from Interaction4SO)Rate for flow to and from A (positive value indicates inflow)
RealOutput_Ay_A (from Interaction4SO)Rate for flow to and from A (positive value indicates inflow)
Interfaces.Connectors.RealInputu_rateRate of inflow to B
Interfaces.Connectors.RealInputu_factorFactor of proportionality (amount of A per amount of B)

Revisions

  • Value for the optional parameter rate changed to unspecified in v2.1.0.

  • Component type for parInflowRate_B changed to ConstantConverter in v2.2.

  • Type for factor changed to Real in v2.2.

  • Added useExplicitRatio option for more convenience in unit conversions in v2.2.
