modelDynamicDiode
Dynamic diode model including junction and diffusion capacitance
Extends from Modelica.Electrical.Analog.Interfaces.OnePort (Component with two electrical pins p and n and current i from p to n).
Information
This is a dynamic diode model according to [Tietze2019] :
- Shockley-equation

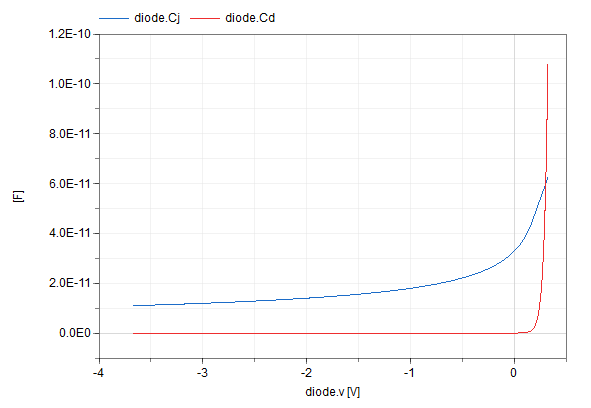

- Junction capacitance CJ
- Diffusion capacitance CD
Note:
High current injection and breakthrough are not taken into account.
This model might not be suited for all experiments i.e. boundary conditions, but it works as expected for the RLD - circuit.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| ParameterSets.DynamicDiode.DynamicDiodeData | data |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| PositivePin | p (from TwoPin) | Positive electrical pin | |
| NegativePin | n (from TwoPin) | Negative electrical pin |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| SI.Voltage | v (from TwoPin) | Voltage drop of the two pins (= p.v - n.v) | |
| SI.Current | i (from OnePort) | Current flowing from pin p to pin n | |
| SI.Current | id | Diode current | |
| SI.Current | ic | Capacitive current | |
| SI.ElectricCharge | q | Charge of capacitors | |
| SI.Capacitance | Cj | Junction capacitance | |
| SI.Capacitance | Cd | Diffusion capacitance |
