modelTestCase2
Active power variation on the load
Extends from Icons.Example (Icon for runnable examples).
Information

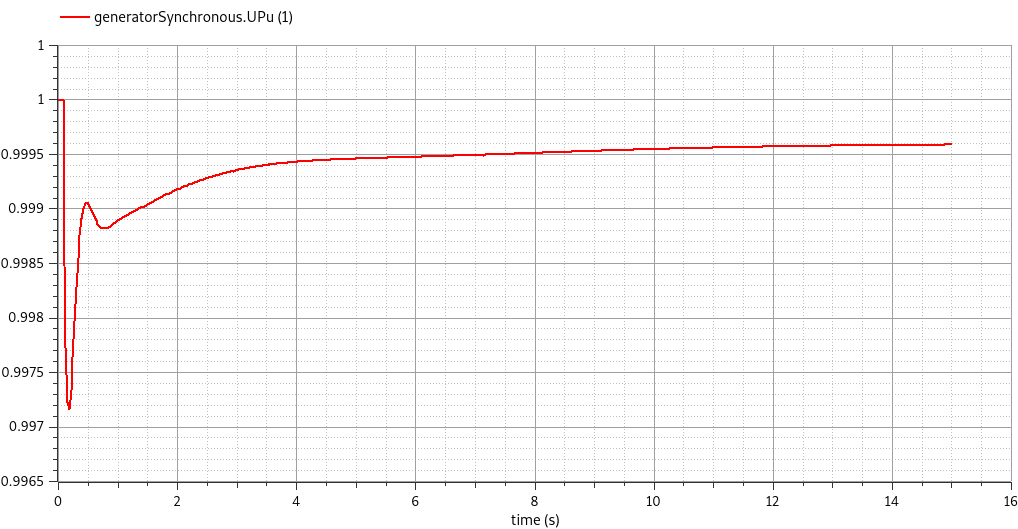

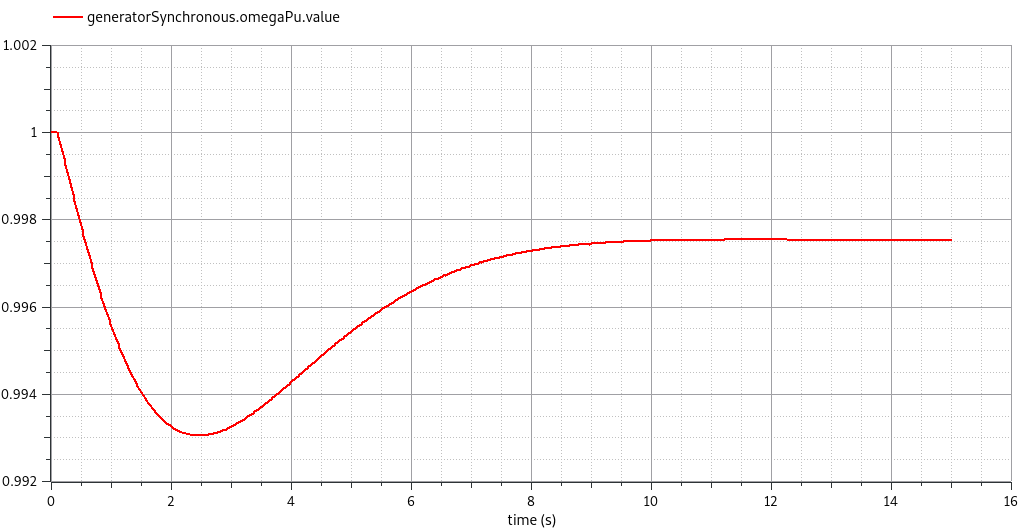

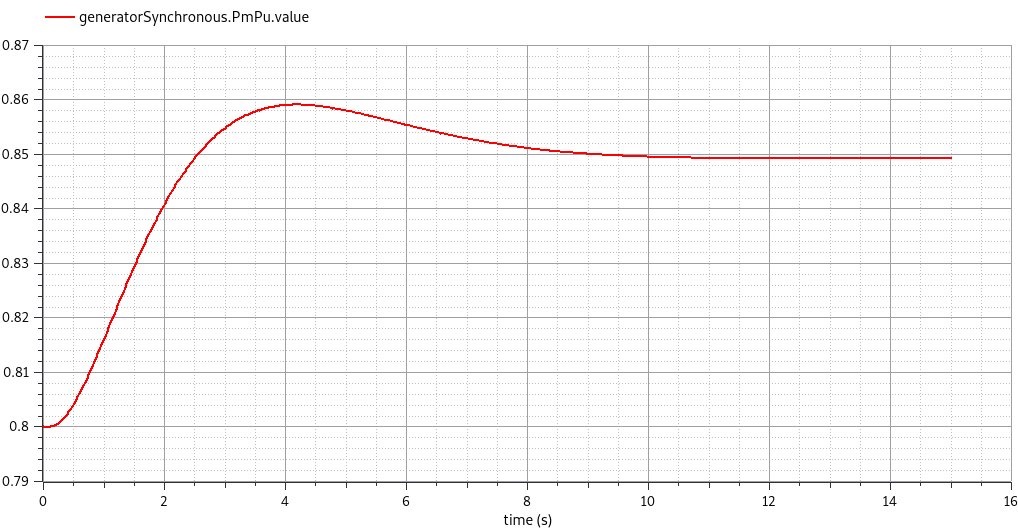

The purpose of the second test case is to compare the dynamic behaviourr of the model for the synchronous generator and its governor by analysing the terminal voltage, the active and mechanical power of the synchronous machine, the reactive power of the synchronous machine and the speed.At the event-time the active power demand of the additional constant impedance is increased by 0.05 pu.
The results obtained perfectly match the ones presented in the ENTSO-E report.
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Dynawo.Examples.BaseClasses.GeneratorSynchronousInterfaces | generatorSynchronous | ||
| Dynawo.Electrical.Controls.Machines.VoltageRegulators.Standard.SEXS | avr | ||
| Dynawo.Electrical.Controls.Machines.Governors.Standard.Steam.TGov1 | governor | ||
| Modelica.Blocks.Sources.Constant | const | ||
| Modelica.Blocks.Sources.Constant | const1 | ||
| Modelica.Blocks.Sources.Constant | omegaRefPu | ||
| Modelica.Blocks.Sources.Constant | PmRefPu | ||
| Dynawo.Electrical.Loads.LoadAlphaBeta | load | ||
| Modelica.Blocks.Sources.Constant | QRefPu | ||
| Modelica.Blocks.Sources.Step | PRefPu |
