modelGovHydro4St4b
Active power variation on the load with governor GovHydro4
Extends from Icons.Example (Icon for runnable examples).
Information
This test case tests the governor GovHydro4 in combination with a synchronous generator three windings and the AVR St4b.An active load step of 0.05 pu is applied at t=0.1s.

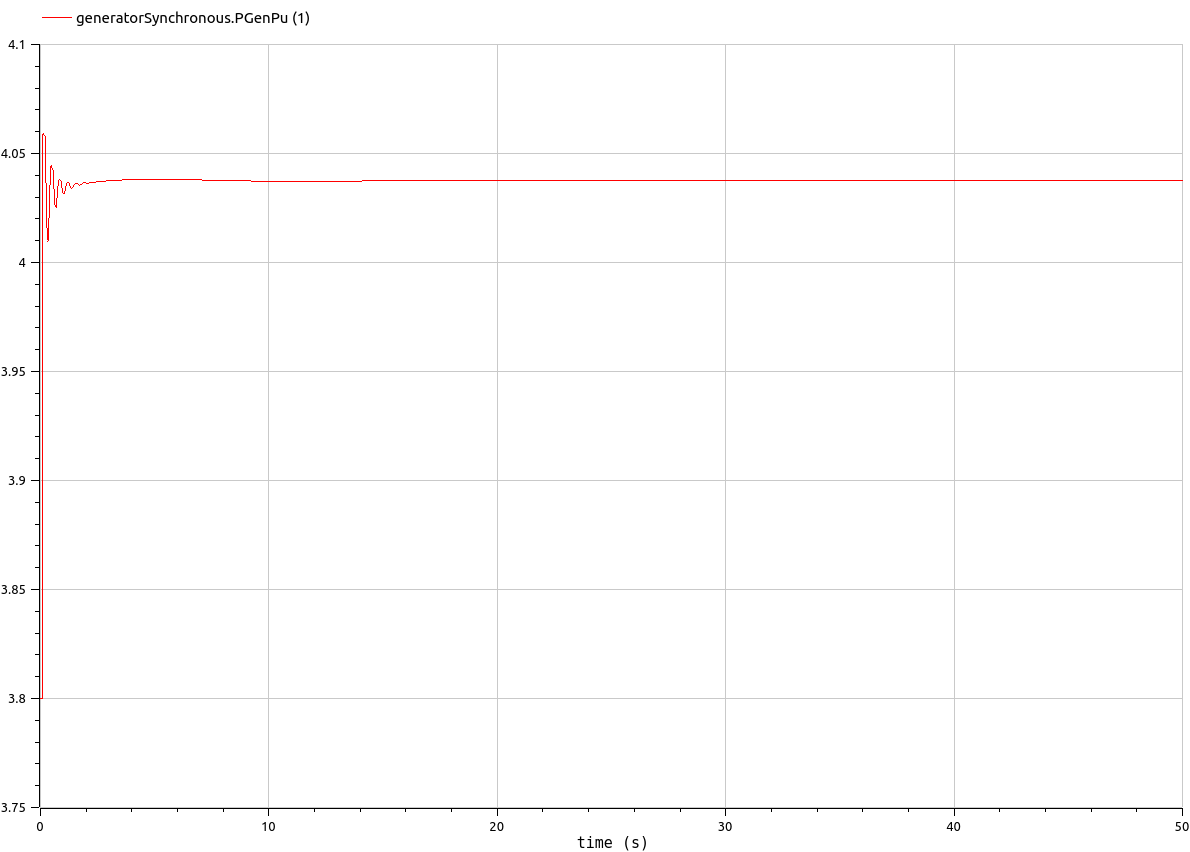

PGenPu:

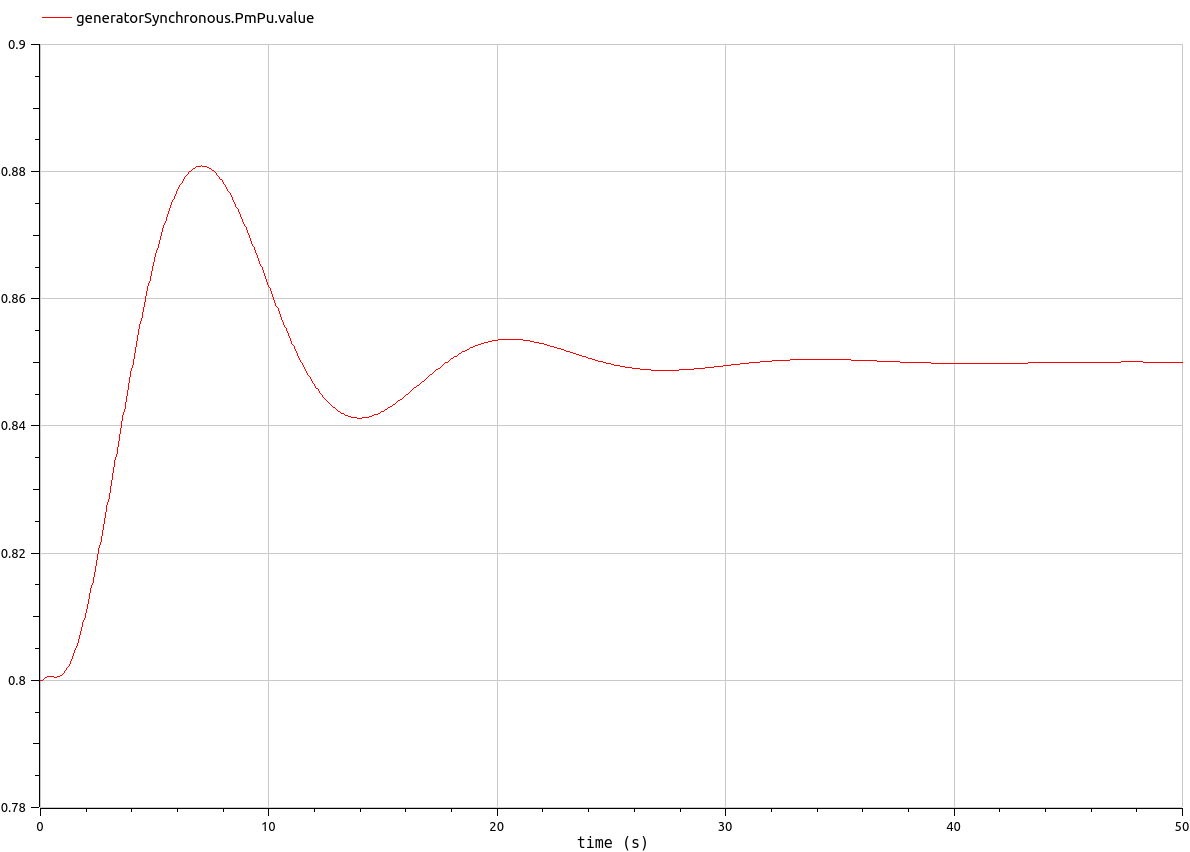

PmPu:

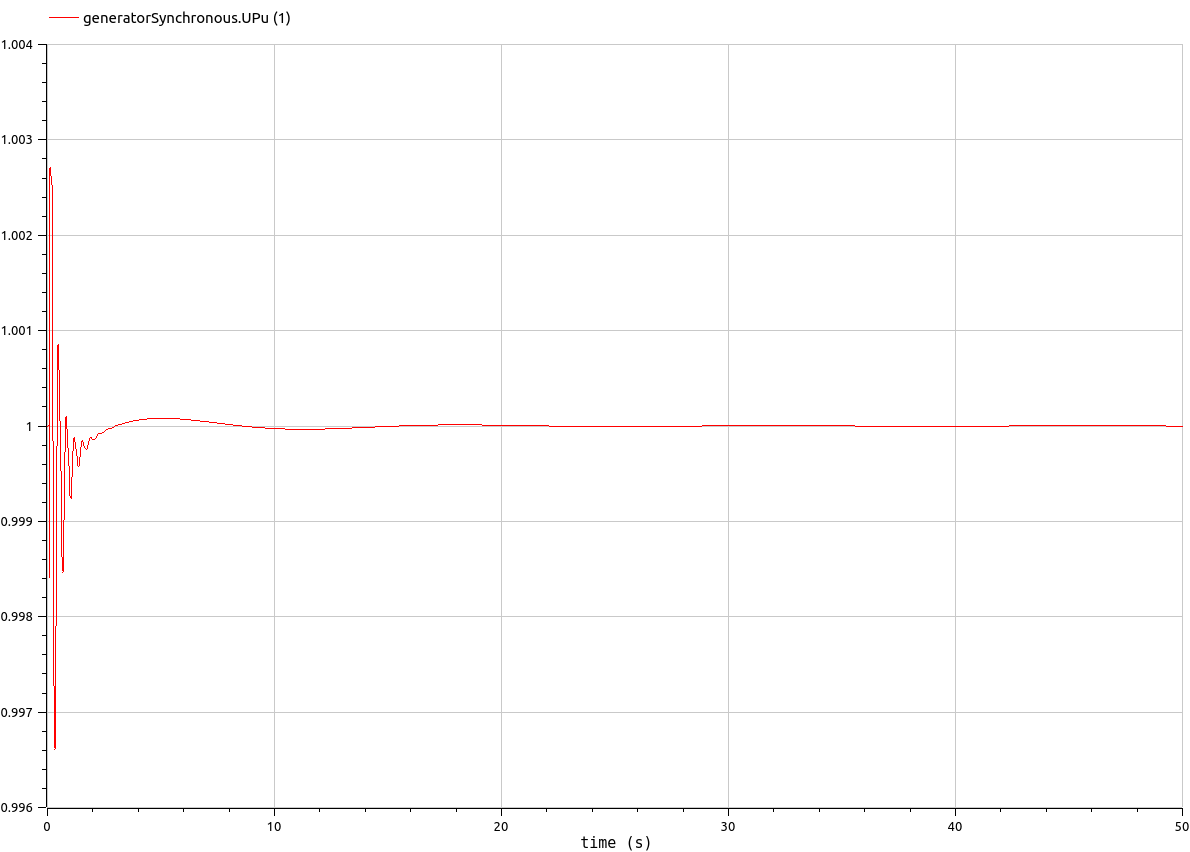

UPu:
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Dynawo.Examples.BaseClasses.GeneratorSynchronousInterfaces | generatorSynchronous | ||
| Dynawo.Electrical.Controls.Machines.VoltageRegulators.Standard.St4b | avr | ||
| Modelica.Blocks.Sources.Constant | const | ||
| Modelica.Blocks.Sources.Constant | const1 | ||
| Dynawo.Electrical.Controls.Machines.Governors.Standard.Hydraulic.GovHydro4 | governor | ||
| Modelica.Blocks.Sources.Constant | omegaRef0 | ||
| Modelica.Blocks.Sources.Constant | PRef0 | ||
| Modelica.Blocks.Sources.Constant | UPssPu | ||
| Modelica.Blocks.Sources.Constant | UsRefPu | ||
| Dynawo.Electrical.Loads.LoadAlphaBeta | load | ||
| Modelica.Blocks.Sources.Step | PRefPu | ||
| Modelica.Blocks.Sources.Constant | QRefPu | ||
| Dynawo.Electrical.Loads.Load_INIT | load_INIT |
