modelBearing
Extends from Modelica.Electrical.Machines.Interfaces.FlangeSupport (Shaft and support), Modelica.Mechanics.Translational.Interfaces.PartialRigid (Rigid connection of two translational 1D flanges).
Information
The friction losses are considered by the equations
tau / tauRef = (+w / wRef) ^ power_w for w > +wLinear - tau / tauRef = (-w / wRef) ^ power_w for w < -wLinear
with
tauRef * wRef = PRef
being the friction torque at the referenc angular velocity
wRef. The exponent power_w is
approximately 1.5 for axial ventilation and approximately 2.0 for radial ventilation.
For stability reasons the friction torque tau is approximated by a linear curve
tau / tauLinear = w / wLinear
with
tauLinear = tauRef*(wLinear/wRef) ^ power_w
in the range -wLinear ≤ w ≤ wLinear with wLinear = 0.001 * wRef. The relationship of torque
and angular velocity is depicted in Fig. 1
 |

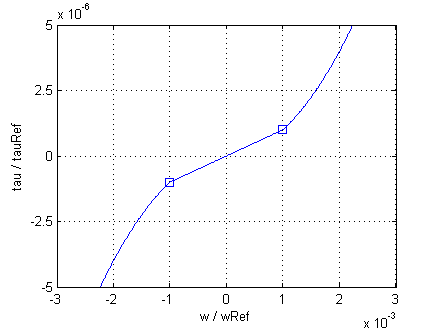

Fig. 1: Friction loss torque versus angular velocity for power_w = 2 |
See also
If it is desired to neglect friction losses, set frictionParameters.PRef = 0 (this is the default).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| SI.Length | L (from PartialRigid) | Length of component, from left flange to right flange (= flange_b.s - flange_a.s) | |
| Real | eps | 0.1 | |
| SI.CoefficientOfFriction | mu | 0.006 | Friction coefficient |
| SI.Diameter | d | Diameter of Bearing | |
| SI.Force | F_pr | 0 | Preload force |
| SI.AngularVelocity | w_ref | 10 | Angular velocity after which the friction torque can is approx. equal to (1-eta)*flange_a.tau |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Mechanics.Rotational.Interfaces.Flange_a | flange (from FlangeSupport) | Shaft end | |
| Modelica.Mechanics.Rotational.Interfaces.Flange_a | support (from FlangeSupport) | Housing and support | |
| Flange_a | flange_a (from PartialTwoFlanges) | (left) driving flange (flange axis directed into cut plane, e. g. from left to right) | |
| Flange_b | flange_b (from PartialTwoFlanges) | (right) driven flange (flange axis directed out of cut plane) |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| SI.Angle | phi (from FlangeSupport) | Angle between shaft and support | |
| SI.Torque | tau (from FlangeSupport) | Torque | |
| SI.AngularVelocity | w (from FlangeSupport) | Relative angular velocity of flange and support | |
| SI.Position | s (from PartialRigid) | Absolute position of center of component (s = flange_a.s + L/2 = flange_b.s - L/2) | |
| SI.Force | F_ax | Axial force on bearing |
