.IBPSA.Controls.Continuous.Examples.OffTimer

Information

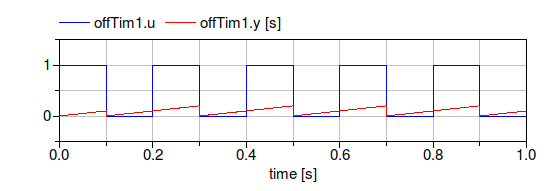

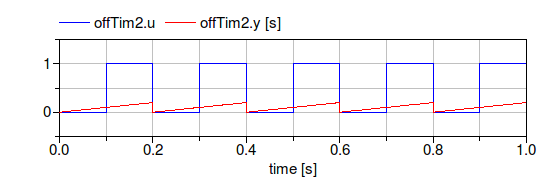

Example that demonstrates the use of the model IBPSA.Controls.Continuous.OffTimer. The input to the two timers are alternating boolean values. Whenever the input becomes false(=0), the timer is reset. The figures below show the input and output of the blocks.

Revisions

• November 21, 2011, by Michael Wetter:
  Added documentation.
