.IBPSA.Fluid.Geothermal.Borefields.BaseClasses.HeatTransfer.GroundTemperatureResponse

Information

This model calculates the ground temperature response to obtain the temperature at the borehole wall in a geothermal system where heat is being injected into or extracted from the ground.

A load-aggregation scheme based on that developed by Claesson and Javed (2012) is used to calculate the borehole wall temperature response with the temporal superposition of ground thermal loads. In its base form, the load-aggregation scheme uses fixed-length aggregation cells to agglomerate thermal load history together, with more distant cells (denoted with a higher cell and vector index) representing more distant thermal history. The more distant the thermal load, the less impactful it is on the borehole wall temperature change at the current time step. Each cell has an aggregation time associated to it denoted by nu, which corresponds to the simulation time (since the beginning of heat injection or extraction) at which the cell will begin shifting its thermal load to more distant cells. To determine nu, cells have a temporal size rcel (rcel in this model) which follows the exponential growth


where nCel is the number of consecutive cells which can have the same size. Decreasing rcel will generally decrease calculation times, at the cost of precision in the temporal superposition. rcel is expressed in multiples of the aggregation time resolution (via the parameter tLoaAgg). Then, nu may be expressed as the sum of all rcel values (multiplied by the aggregation time resolution) up to and including that cell in question.

To determine the weighting factors, the borefield's temperature step response at the borefield wall is determined as


where g(·) is the borefield's thermal response factor known as the g-function, H is the total length of all boreholes and ks is the thermal conductivity of the soil. The weighting factors kappa (κ in the equation below) for a given cell i are then expressed as follows.


where ν refers to the vector nu in this model and Tstep0)=0.

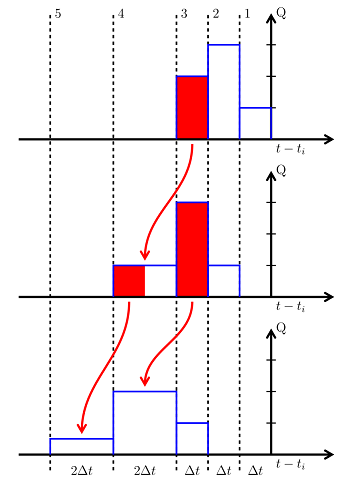

At every aggregation time step, a time event is generated to perform the load aggregation steps. First, the thermal load is shifted. When shifting between cells of different size, total energy is conserved. This operation is illustred in the figure below by Cimmino (2014).


After the cell-shifting operation is performed, the first aggregation cell has its value set to the average thermal load since the last aggregation step. Temporal superposition is then applied by means of a scalar product between the aggregated thermal loads QAgg_flow and the weighting factors κ.

Due to Modelica's variable time steps, the load aggregation scheme is modified by separating the thermal response between the current aggregation time step and everything preceding it. This is done according to


where Tb is the borehole wall temperature, Tg is the undisturbed ground temperature, Q is the ground thermal load per borehole length and h = g/(2 π ks) is a temperature response factor based on the g-function. tk is the last discrete aggregation time step, meaning that the current time t satisfies tk≤t≤tk+1. Δtagg(=tk+1-tk) is the parameter tLoaAgg in the present model.

Thus, ΔTb*(t) is the borehole wall temperature change due to the thermal history prior to the current aggregation step. At every aggregation time step, load aggregation and temporal superposition are used to calculate its discrete value. Assuming no heat injection or extraction until tk+1, this term is assumed to have a linear time derivative, which is given by the difference between ΔTb*(tk+1) (the temperature change from load history at the next discrete aggregation time step, which is constant over the duration of the ongoing aggregation time step) and the total temperature change at the last aggregation time step, ΔTb(t).


The second term ΔTb,q(t) concerns the ongoing aggregation time step. To obtain the time derivative of this term, the thermal response factor h is assumed to vary linearly over the course of an aggregation time step. Therefore, because the ongoing aggregation time step always concerns the first aggregation cell, its derivative (denoted by the parameter dTStepdt in this model) can be calculated as kappa[1], the first value in the kappa vector, divided by the aggregation time step Δt. The derivative of the temperature change at the borehole wall is then expressed as the multiplication of dTStepdt (which only needs to be calculated once at the start of the simulation) and the heat flow Q at the borehole wall.



With the two terms in the expression of ΔTb(t) expressed as time derivatives, ΔTb(t) can itself also be expressed as its time derivative and implemented as such directly in the Modelica equations block with the der() operator.


This load aggregation scheme is validated in IBPSA.Fluid.Geothermal.Borefields.BaseClasses.HeatTransfer.Validation.Analytic_20Years.

References

Cimmino, M. 2014. Développement et validation expérimentale de facteurs de réponse thermique pour champs de puits géothermiques, Ph.D. Thesis, École Polytechnique de Montréal.

Claesson, J. and Javed, S. 2012. A load-aggregation method to calculate extraction temperatures of borehole heat exchangers. ASHRAE Transactions 118(1): 530-539.
