Delay a rising edge of the input, but do not delay a falling edge
Block that delays a signal when it becomes
true.
A rising edge of the Boolean input u gives a
delayed output. A falling edge of the input is immediately given to
the output. If delayOnInit = true, then a
true input signal at the start time is also delayed,
otherwise the input signal is produced immediately at the
output.

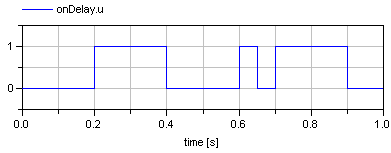

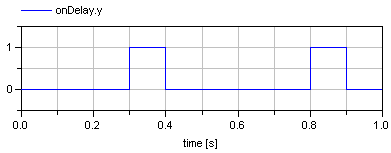

Simulation results of a typical example with a delay time of
0.1 second is shown below.
- November 12, 2020, by Michael Wetter:
Reformulated to remove dependency to
Modelica.Units.SI.
This is for Buildings,
issue 2243.
- February 11, 2019, by Milica Grahovac:
Added boolean input to enable delay of an initial true input.
- January 3, 2017, by Michael Wetter:
First implementation, based on the implementation of the Modelica
Standard Library.
