.IDEAS.ThermalZones.ReducedOrder.RC.TwoElements

Information

This model distinguishes between internal thermal masses and exterior walls. While exterior walls contribute to heat transfer to the ambient, adiabatic conditions apply to internal masses. Parameters for the internal wall element are the length of the RC-chain nInt, the vector of the capacities CInt[nInt] and the vector of the resistances RInt[nInt]. This approach allows considering the dynamic behaviour induced by internal heat storage.

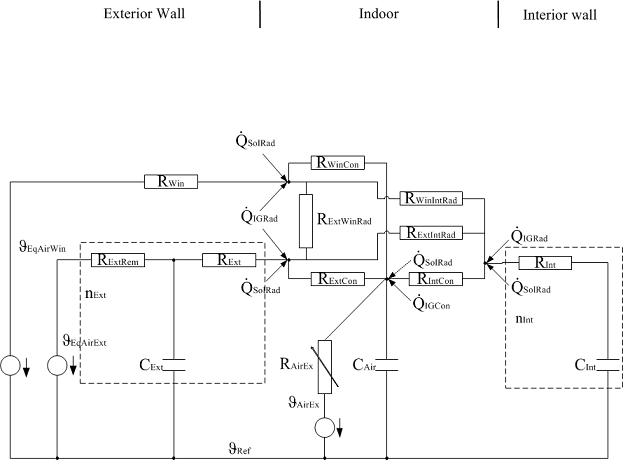

The image below shows the RC-network of this model.

Revisions

• March 7, 2022, by Michael Wetter:
  Removed massDynamics.
  This is for #1542.
• July 11, 2019, by Katharina Brinkmann:
  Renamed alphaInt to hConInt, alphaIntWall to hConIntWall
• January 25, 2019, by Michael Wetter:
  Added start value to avoid warning in JModelica.
• April 18, 2015, by Moritz Lauster:
  First implementation.
