.IndustrialControlSystems.Applications.TrasferFunctions.TypicalTF .IndustrialControlSystems.Applications.TrasferFunctions.TypicalTFThis model is a container of different trasfer functions that
can model the typical processes. The parameters of each TF (listed
in a table below), can be modified in order to adapt each process
to the user's needs.

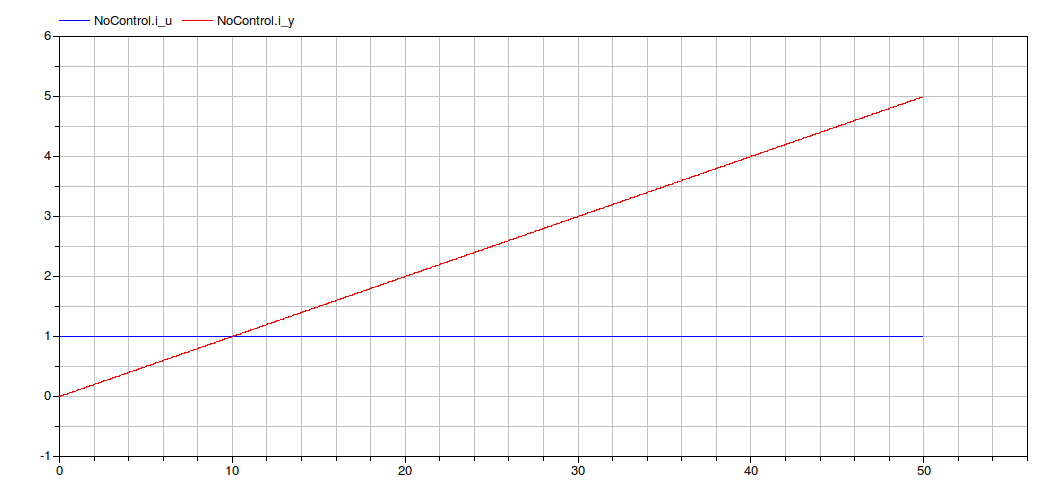

| Integrator | |
|---|---|
Y(s) 1 ---- = ----- U(s) 5s |

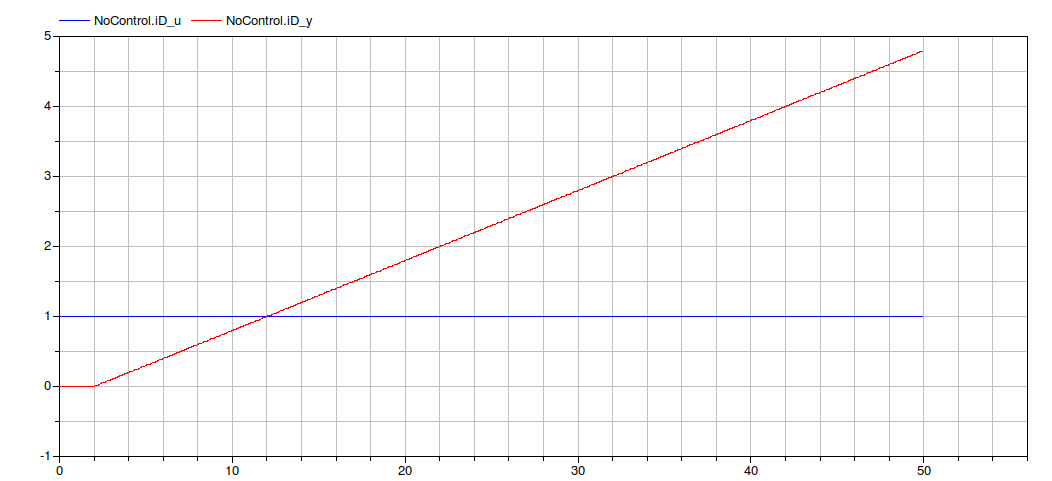

| Integrator + delay | |
|---|---|
Y(s) 1 -2s ---- = ----- e U(s) 5s |

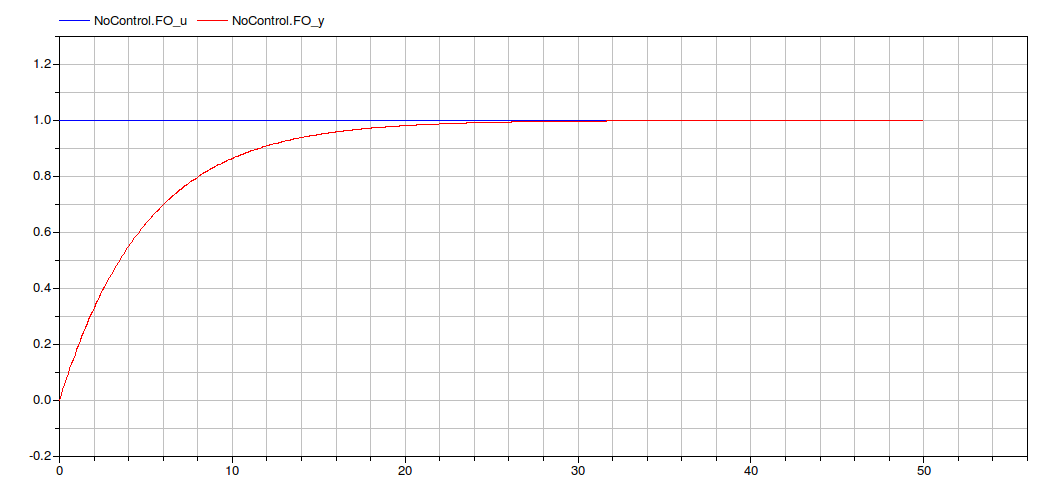

| First Order | |
|---|---|
Y(s) 1 ---- = -------- U(s) 1 + 5s |

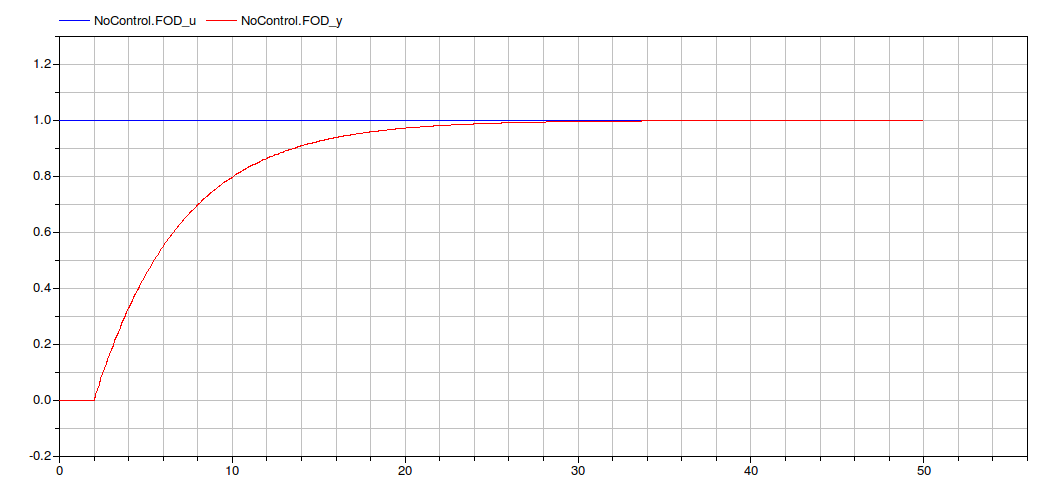

| First Order + delay | |
|---|---|
Y(s) 1 -2s ---- = -------- e U(s) 1 + 5s |

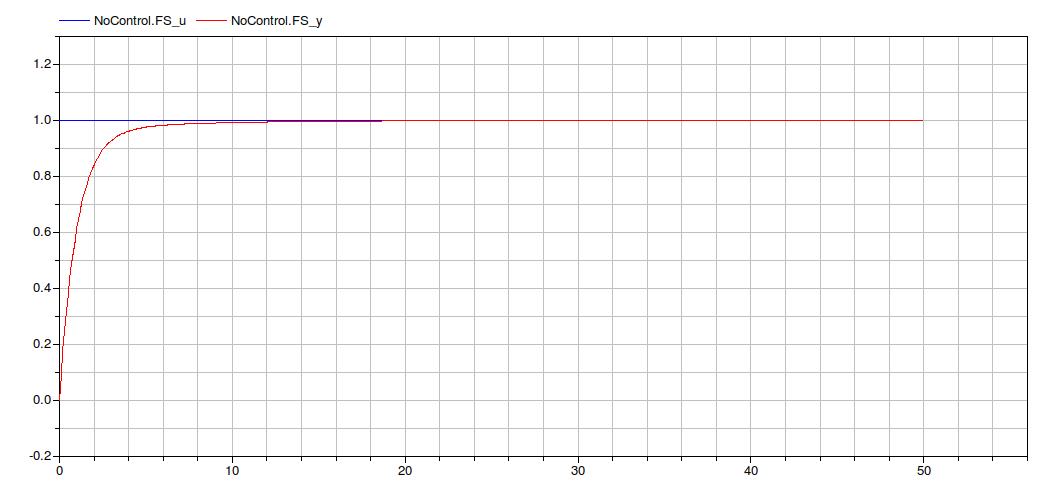

| Fast Slow | |
|---|---|
Y(s) 1 + 5.8s ---- = -------------- U(s) (1 + 6s)(1+s) |

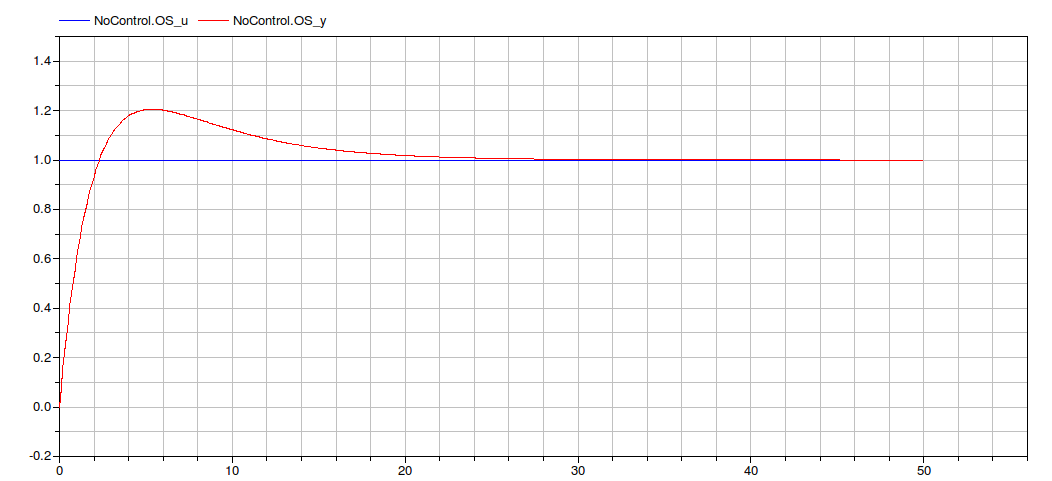

| Overshooting | |
|---|---|
Y(s) 1 + 8s ---- = --------------- U(s) (1 + 5s)(1+2s) |

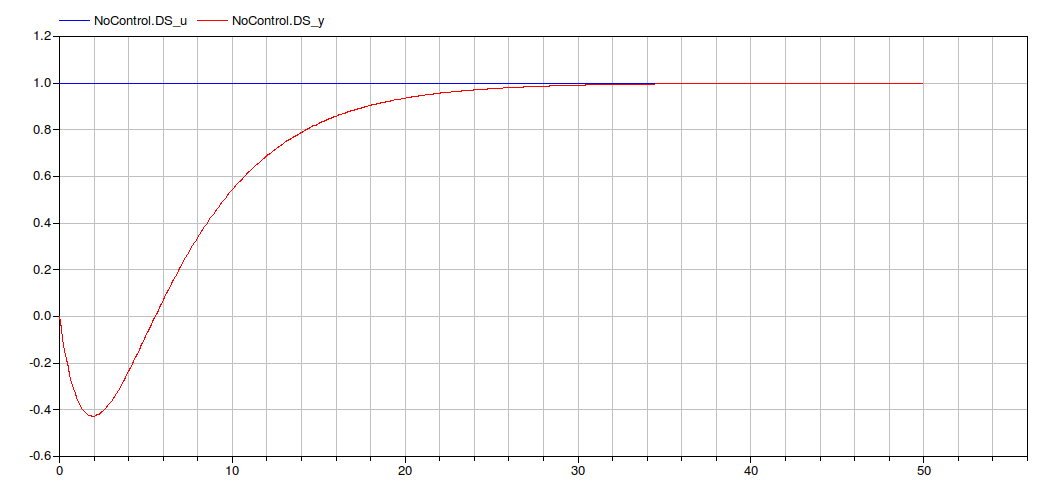

| Undershooting | |
|---|---|
Y(s) 1 - 5.5s ---- = --------------- U(s) (1 + 5s)(1+2s) |

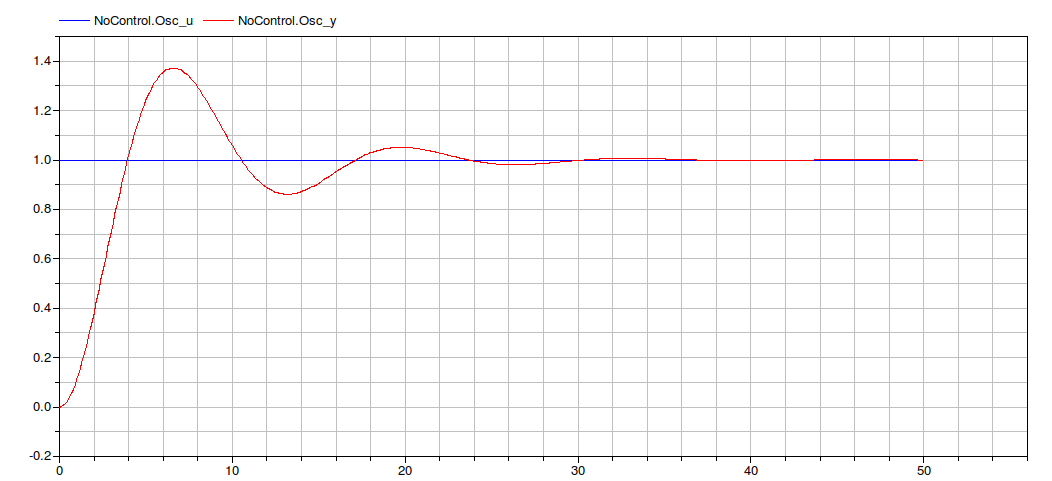

| Complex Poles | |
|---|---|
Y(s) 1 ---- = -------------------- U(s) 1 + 1.2 s + 0.025s |
