Flip Flop test
Description

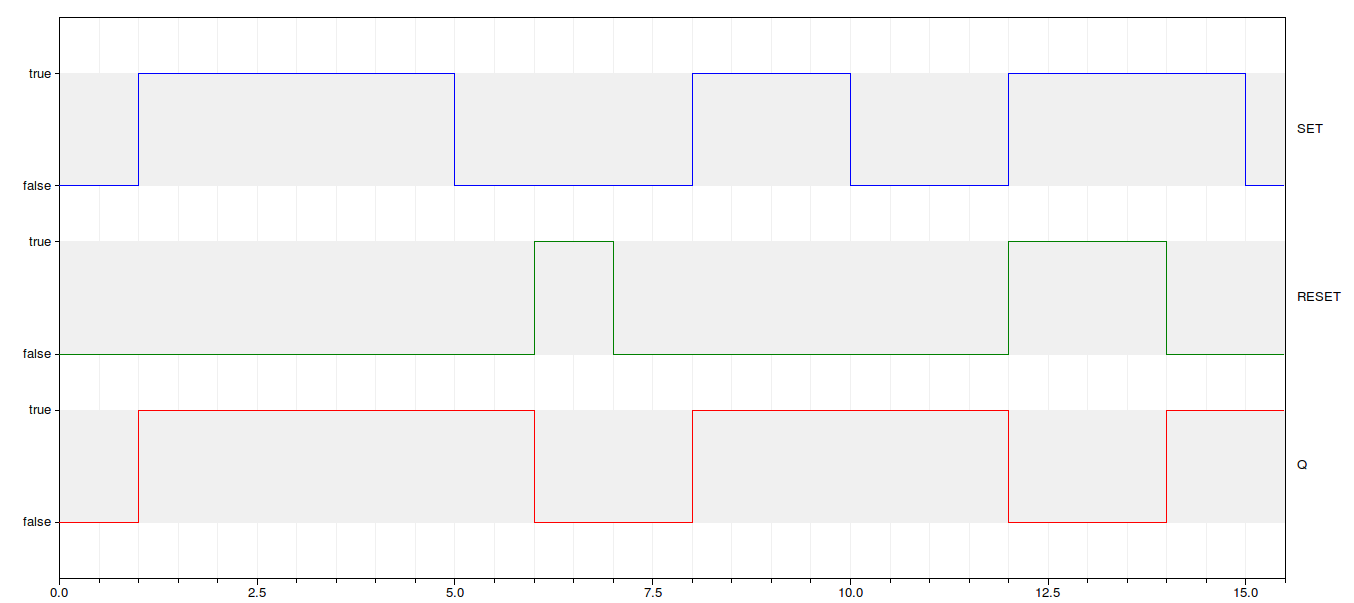

In this examples is tested the Set reset Flip Flop.
In this case Ts = 0.1 and the initial value of the FF is Q = false.
When a rising edge of the SET signal is detected, the output Q becomes true while a rising edge of the RESET signal is detected the output Q becomes false.
