OFF delay timer model
Description
The timer is active after the set signal ( S ) becomes true.
The output ( Q ) of the timer rises up
PV seconds after the Set ( S ) becomes true.
If the Set signal becomes false while counting, the timer stops and
the output remains false.
If the Reset signal ( R ) becomes true,
the output remains false and the timer stops.
Images show:

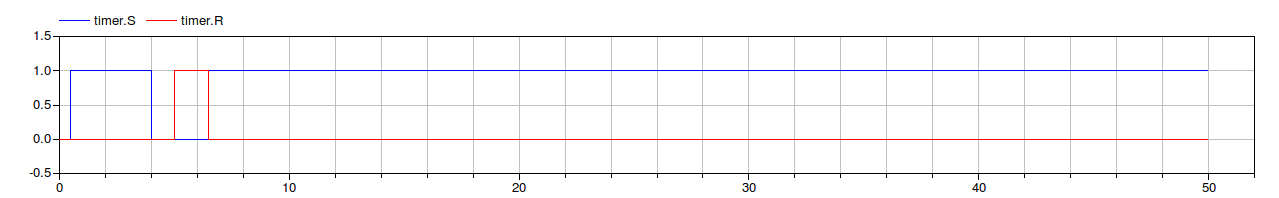

- Set S and Reset R signals,

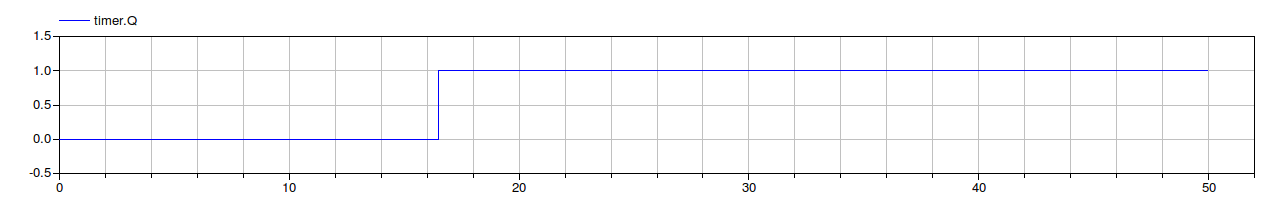

- Output Q,

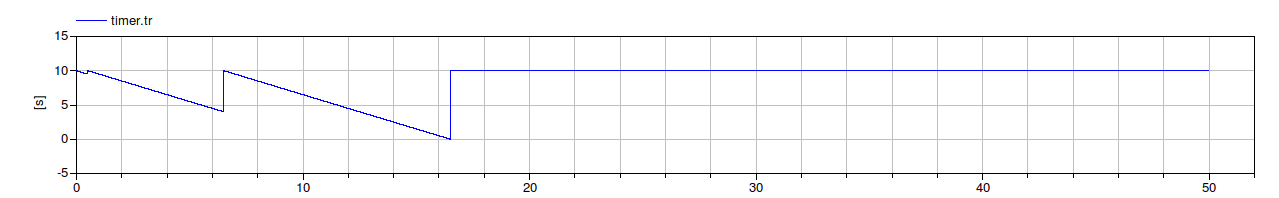

- and the remaining time tr
