Description
The timer is active when the Set signal ( S ) is true.
The output ( Q ) of the timer rises up when S becomes true and remains high
for PV seconds.
If the Set signal become false while counting, the timer stops and the output become false.
If the Reset signal ( R ) becomes true, the output becomes false and the timer stops.
Images show:

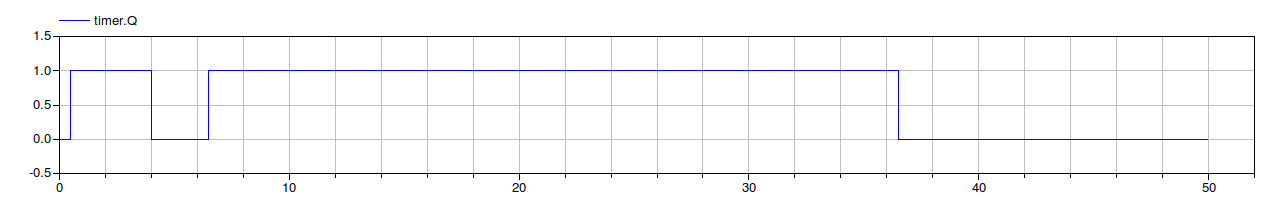

- Output Q,

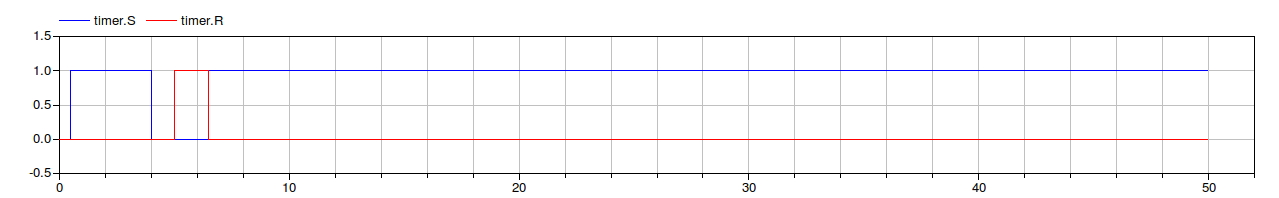

- Set S and Reset R signals,

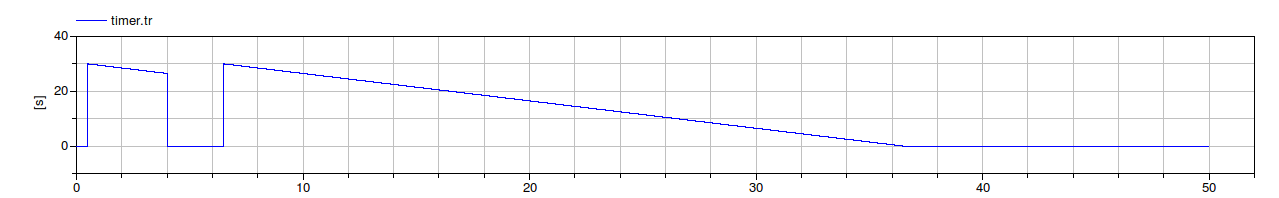

- and the remaining time tr
