ON timer model, active on rising edge
Description
The timer is actived when the set signal ( S ) becomes true (on the rising edge of
S ).
The output ( Q ) of the timer rises up
when S becomes true and remains high
for PV seconds.
If the Set signal become false while counting, the timer does not
stop.
If the reset signal ( R ) becomes true
(a rising edge is detected) the output becomes false and the timer
stops.
Images show:

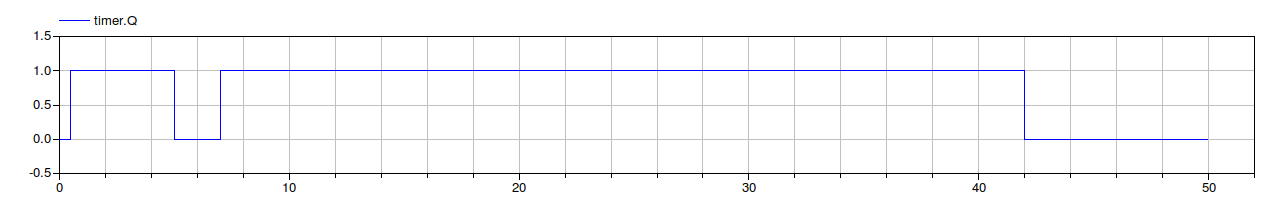

- Output Q,

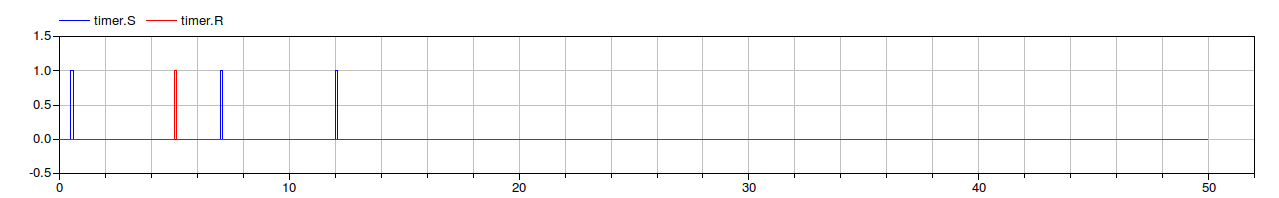

- Set S and Reset R signals,

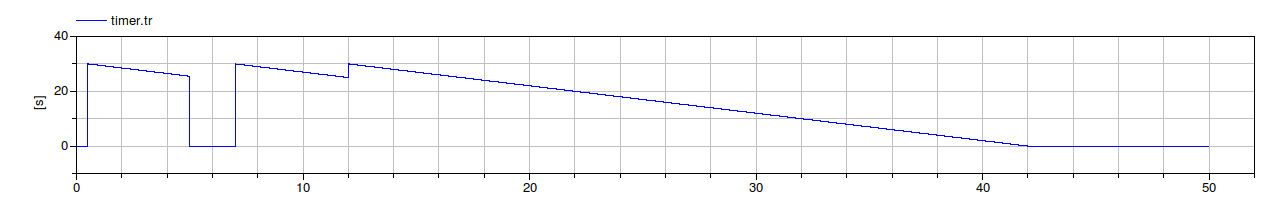

- and the remaining time tr
