Description

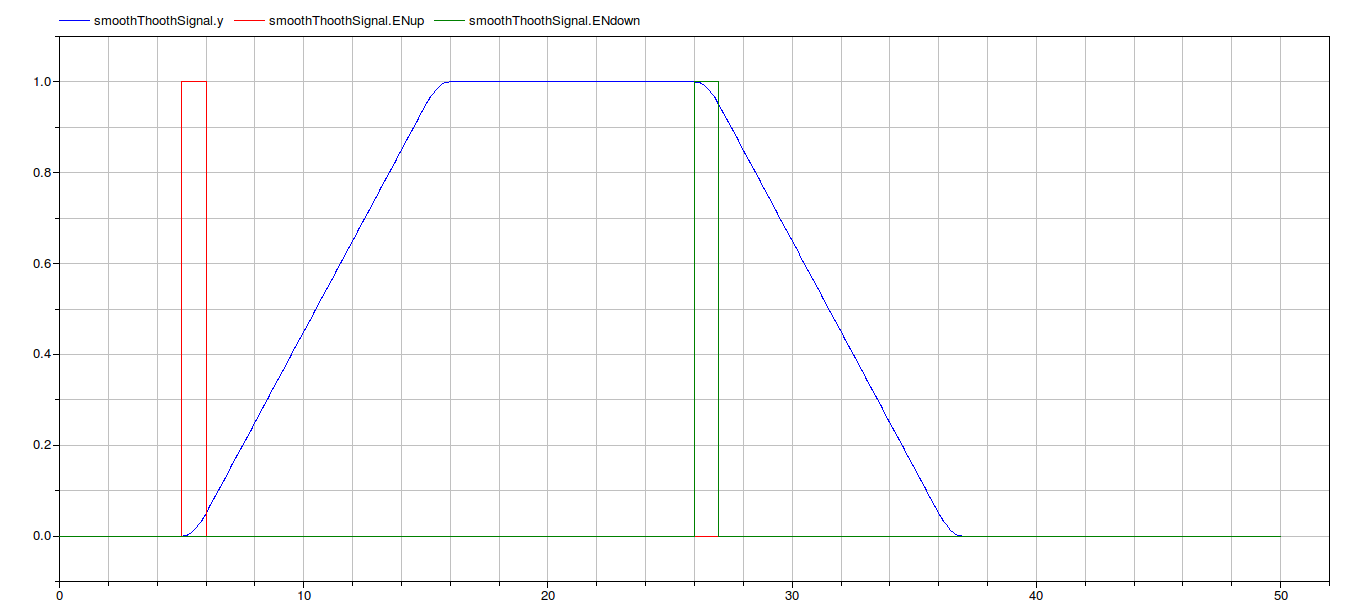

Model of a smooth thooth signal.
The output ( y ) remains at its initial value yin
until the enabling input ENup remains false.
Then the signal changes smoothly. After the smoth start the signal grows up linearly with a slope m.
When the output signal is close to the final value yfin, it is reached smoothly.
The signal returns at its initial value in a specular way, when the input ENup becomes true.
The parameter alfa (that has to be coprises between 0 and 1), indicates the portion of the rising
time occupied by the smooth junction.
The rising is delayed by wait_s seconds, while the falling is delayed by wait_d seconds.
Initial and final values are externally defined.
Fixed Point not available in this model
- Industrial Control Systems (v 1.0.0) : April-May 2012
- List of revisions:
- 11 May 2012 (author: Marco Bonvini)
- Main Authors:
- Marco Bonvini; <bonvini@elet.polimi.it>
- Alberto Leva <leva@elet.polimi.it>
- Politecnico di Milano
- Dipartimento di Elettronica e Informazione
- Via Ponzio 34/5
- 20133 Milano - ITALIA -
- Copyright:
- Copyright © 2010-2012, Marco Bonvini and Alberto Leva.
- The IndustrialControlSystems package is free software; it can be redistributed and/or modified under the terms of the Modelica license.
